# .Large[# My featurette]
## .small[featuring [{}]() ...]
#### .tiny[Gina Reynolds | 2023-10-25 |Image credit: Denise Jans, Upsplash]
???
Title

---

count: false

.panel1-feature-auto[

```r
*library(tidyverse)
```
]

.panel2-feature-auto[

]

---
count: false

.panel1-feature-auto[

```r
library(tidyverse)
*major = c("C", "G", "D", "A", "E", "B",
*           "F#/Gb","C#/Db", "G#/Ab", "Eb", "Bb", "F")
```
]

.panel2-feature-auto[

]

---
count: false

.panel1-feature-auto[

```r
library(tidyverse)
major = c("C", "G", "D", "A", "E", "B",
            "F#/Gb","C#/Db", "G#/Ab", "Eb", "Bb", "F")
*minor = c("Am", "Em", "Bm", "F#m", "C#m", "G#m", "Ebm",
*           "Bbm", "Fm", "Cm", "Gm", "Dm")
```
]

.panel2-feature-auto[

]

---
count: false

.panel1-feature-auto[

```r
library(tidyverse)
major = c("C", "G", "D", "A", "E", "B",
            "F#/Gb","C#/Db", "G#/Ab", "Eb", "Bb", "F")
minor = c("Am", "Em", "Bm", "F#m", "C#m", "G#m", "Ebm",
            "Bbm", "Fm", "Cm", "Gm", "Dm")

*major_roman = c("I", "V", "II", "VI", "III", "VII", rep("",5), "IV")
```
]

.panel2-feature-auto[

]

---
count: false

.panel1-feature-auto[

```r
library(tidyverse)
major = c("C", "G", "D", "A", "E", "B",
            "F#/Gb","C#/Db", "G#/Ab", "Eb", "Bb", "F")
minor = c("Am", "Em", "Bm", "F#m", "C#m", "G#m", "Ebm",
            "Bbm", "Fm", "Cm", "Gm", "Dm")

major_roman = c("I", "V", "II", "VI", "III", "VII", rep("",5), "IV")

*major
```
]

.panel2-feature-auto[

```
##  [1] "C"     "G"     "D"     "A"     "E"     "B"     "F#/Gb" "C#/Db" "G#/Ab"
## [10] "Eb"    "Bb"    "F"
```
]

---
count: false

.panel1-feature-auto[

```r
library(tidyverse)
major = c("C", "G", "D", "A", "E", "B",
            "F#/Gb","C#/Db", "G#/Ab", "Eb", "Bb", "F")
minor = c("Am", "Em", "Bm", "F#m", "C#m", "G#m", "Ebm",
            "Bbm", "Fm", "Cm", "Gm", "Dm")

major_roman = c("I", "V", "II", "VI", "III", "VII", rep("",5), "IV")

major %>%
* tibble(minor)
```
]

.panel2-feature-auto[

```
## # A tibble: 12 × 2
##    .     minor
##    <chr> <chr>
##  1 C     Am
##  2 G     Em
##  3 D     Bm
##  4 A     F#m
##  5 E     C#m
##  6 B     G#m
##  7 F#/Gb Ebm
##  8 C#/Db Bbm
##  9 G#/Ab Fm
## 10 Eb    Cm
## 11 Bb    Gm
## 12 F     Dm
```
]

---
count: false

.panel1-feature-auto[

```r
library(tidyverse)
major = c("C", "G", "D", "A", "E", "B",
            "F#/Gb","C#/Db", "G#/Ab", "Eb", "Bb", "F")
minor = c("Am", "Em", "Bm", "F#m", "C#m", "G#m", "Ebm",
            "Bbm", "Fm", "Cm", "Gm", "Dm")

major_roman = c("I", "V", "II", "VI", "III", "VII", rep("",5), "IV")

major %>%
  tibble(minor) %>%
* ggplot()
```
]

.panel2-feature-auto[
![](wedge-circle-of-5ths_files/figure-html/feature_auto_07_output-1.png)
]

---
count: false

.panel1-feature-auto[

```r
library(tidyverse)
major = c("C", "G", "D", "A", "E", "B",
            "F#/Gb","C#/Db", "G#/Ab", "Eb", "Bb", "F")
minor = c("Am", "Em", "Bm", "F#m", "C#m", "G#m", "Ebm",
            "Bbm", "Fm", "Cm", "Gm", "Dm")

major_roman = c("I", "V", "II", "VI", "III", "VII", rep("",5), "IV")

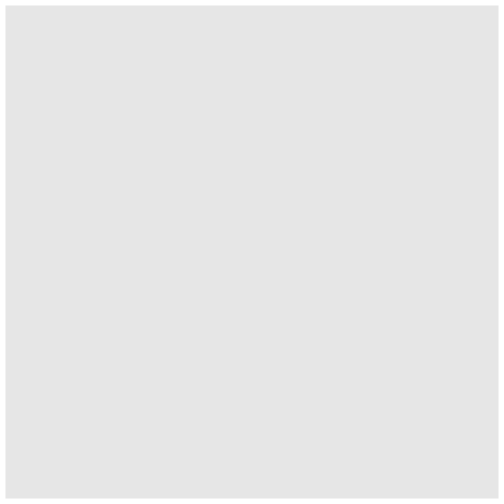

major %>%
  tibble(minor) %>%
  ggplot() +
* aes(fill = major)
```
]

.panel2-feature-auto[
![](wedge-circle-of-5ths_files/figure-html/feature_auto_08_output-1.png)
]

---
count: false

.panel1-feature-auto[

```r
library(tidyverse)
major = c("C", "G", "D", "A", "E", "B",
            "F#/Gb","C#/Db", "G#/Ab", "Eb", "Bb", "F")
minor = c("Am", "Em", "Bm", "F#m", "C#m", "G#m", "Ebm",
            "Bbm", "Fm", "Cm", "Gm", "Dm")

major_roman = c("I", "V", "II", "VI", "III", "VII", rep("",5), "IV")

major %>%
  tibble(minor) %>%
  ggplot() +
  aes(fill = major) +

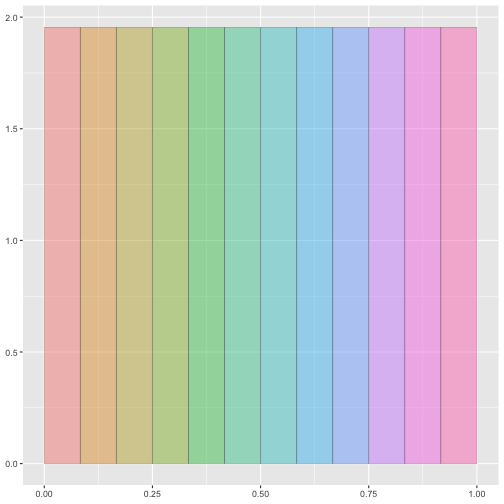

* ggwedge:::geom_pie(show.legend = F,
*                    color = "black",
*                    alpha = .4,
*                    linewidth = .1)
```
]

.panel2-feature-auto[
![](wedge-circle-of-5ths_files/figure-html/feature_auto_09_output-1.png)
]

---
count: false

.panel1-feature-auto[

```r
library(tidyverse)
major = c("C", "G", "D", "A", "E", "B",
            "F#/Gb","C#/Db", "G#/Ab", "Eb", "Bb", "F")
minor = c("Am", "Em", "Bm", "F#m", "C#m", "G#m", "Ebm",
            "Bbm", "Fm", "Cm", "Gm", "Dm")

major_roman = c("I", "V", "II", "VI", "III", "VII", rep("",5), "IV")

major %>%
  tibble(minor) %>%
  ggplot() +
  aes(fill = major) +
  ggwedge:::geom_pie(show.legend = F,
                     color = "black",
                     alpha = .4,
                     linewidth = .1) +

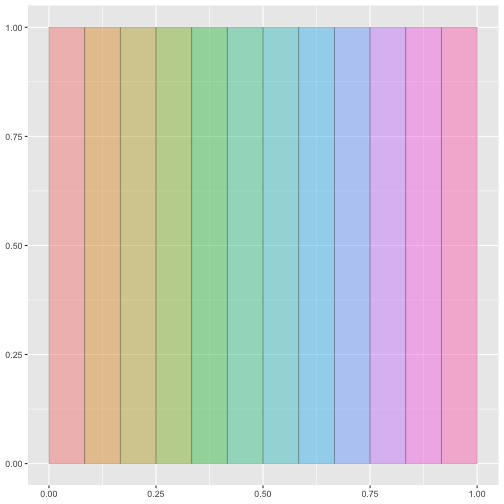

* aes(r = 1)
```
]

.panel2-feature-auto[
![](wedge-circle-of-5ths_files/figure-html/feature_auto_10_output-1.png)
]

---
count: false

.panel1-feature-auto[

```r
library(tidyverse)
major = c("C", "G", "D", "A", "E", "B",
            "F#/Gb","C#/Db", "G#/Ab", "Eb", "Bb", "F")
minor = c("Am", "Em", "Bm", "F#m", "C#m", "G#m", "Ebm",
            "Bbm", "Fm", "Cm", "Gm", "Dm")

major_roman = c("I", "V", "II", "VI", "III", "VII", rep("",5), "IV")

major %>%
  tibble(minor) %>%
  ggplot() +
  aes(fill = major) +
  ggwedge:::geom_pie(show.legend = F,
                     color = "black",
                     alpha = .4,
                     linewidth = .1) +
  aes(r = 1) +

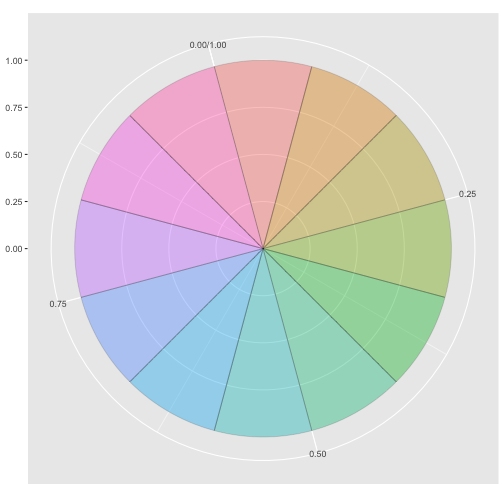

* coord_polar(start = -pi/12)
```
]

.panel2-feature-auto[
![](wedge-circle-of-5ths_files/figure-html/feature_auto_11_output-1.png)
]

---
count: false

.panel1-feature-auto[

```r
library(tidyverse)
major = c("C", "G", "D", "A", "E", "B",
            "F#/Gb","C#/Db", "G#/Ab", "Eb", "Bb", "F")
minor = c("Am", "Em", "Bm", "F#m", "C#m", "G#m", "Ebm",
            "Bbm", "Fm", "Cm", "Gm", "Dm")

major_roman = c("I", "V", "II", "VI", "III", "VII", rep("",5), "IV")

major %>%
  tibble(minor) %>%
  ggplot() +
  aes(fill = major) +
  ggwedge:::geom_pie(show.legend = F,
                     color = "black",
                     alpha = .4,
                     linewidth = .1) +
  aes(r = 1) +
  coord_polar(start = -pi/12) +

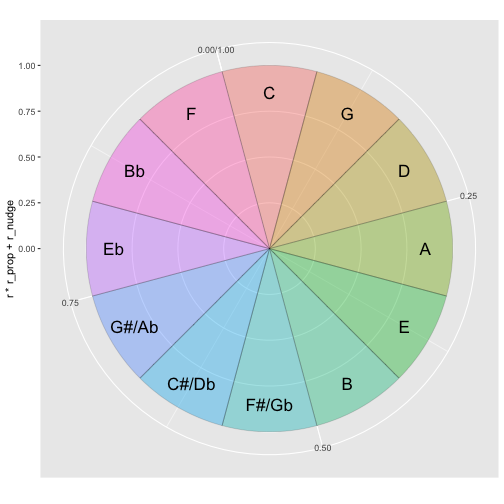

* ggwedge:::geom_pie_label(aes(label = after_stat(major)),
*                r_prop = .85, size = 6)
```
]

.panel2-feature-auto[
![](wedge-circle-of-5ths_files/figure-html/feature_auto_12_output-1.png)
]

---
count: false

.panel1-feature-auto[

```r
library(tidyverse)
major = c("C", "G", "D", "A", "E", "B",
            "F#/Gb","C#/Db", "G#/Ab", "Eb", "Bb", "F")
minor = c("Am", "Em", "Bm", "F#m", "C#m", "G#m", "Ebm",
            "Bbm", "Fm", "Cm", "Gm", "Dm")

major_roman = c("I", "V", "II", "VI", "III", "VII", rep("",5), "IV")

major %>%
  tibble(minor) %>%
  ggplot() +
  aes(fill = major) +
  ggwedge:::geom_pie(show.legend = F,
                     color = "black",
                     alpha = .4,
                     linewidth = .1) +
  aes(r = 1) +
  coord_polar(start = -pi/12) +
  ggwedge:::geom_pie_label(aes(label = after_stat(major)),
                 r_prop = .85, size = 6) +

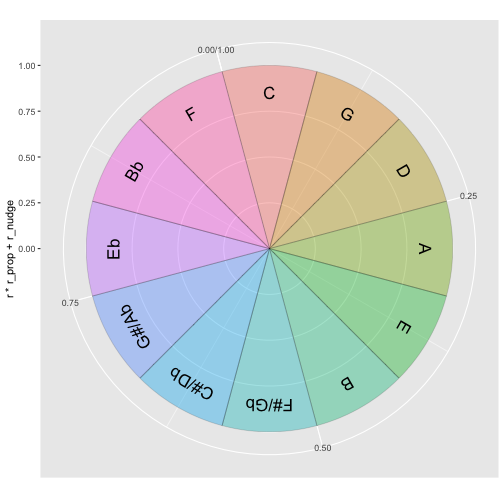

* aes(angle = after_stat(angle_wedge -90+180/12))
```
]

.panel2-feature-auto[
![](wedge-circle-of-5ths_files/figure-html/feature_auto_13_output-1.png)
]

---
count: false

.panel1-feature-auto[

```r
library(tidyverse)
major = c("C", "G", "D", "A", "E", "B",
            "F#/Gb","C#/Db", "G#/Ab", "Eb", "Bb", "F")
minor = c("Am", "Em", "Bm", "F#m", "C#m", "G#m", "Ebm",
            "Bbm", "Fm", "Cm", "Gm", "Dm")

major_roman = c("I", "V", "II", "VI", "III", "VII", rep("",5), "IV")

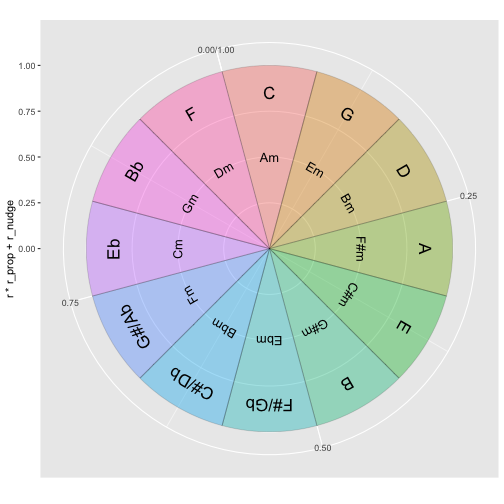

major %>%
  tibble(minor) %>%
  ggplot() +
  aes(fill = major) +
  ggwedge:::geom_pie(show.legend = F,
                     color = "black",
                     alpha = .4,
                     linewidth = .1) +
  aes(r = 1) +
  coord_polar(start = -pi/12) +
  ggwedge:::geom_pie_label(aes(label = after_stat(major)),
                 r_prop = .85, size = 6) +
  aes(angle = after_stat(angle_wedge -90+180/12)) +
* ggwedge:::geom_pie_label(aes(label = after_stat(minor)),
*                r_prop = .5, size = 4.5)
```
]

.panel2-feature-auto[
![](wedge-circle-of-5ths_files/figure-html/feature_auto_14_output-1.png)
]

---
count: false

.panel1-feature-auto[

```r
library(tidyverse)
major = c("C", "G", "D", "A", "E", "B",
            "F#/Gb","C#/Db", "G#/Ab", "Eb", "Bb", "F")
minor = c("Am", "Em", "Bm", "F#m", "C#m", "G#m", "Ebm",
            "Bbm", "Fm", "Cm", "Gm", "Dm")

major_roman = c("I", "V", "II", "VI", "III", "VII", rep("",5), "IV")

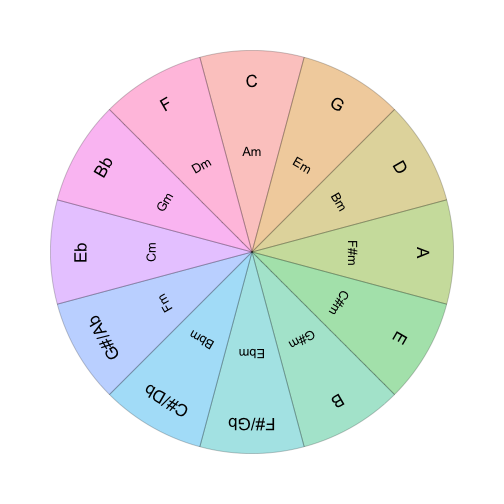

major %>%
  tibble(minor) %>%
  ggplot() +
  aes(fill = major) +
  ggwedge:::geom_pie(show.legend = F,
                     color = "black",
                     alpha = .4,
                     linewidth = .1) +
  aes(r = 1) +
  coord_polar(start = -pi/12) +
  ggwedge:::geom_pie_label(aes(label = after_stat(major)),
                 r_prop = .85, size = 6) +
  aes(angle = after_stat(angle_wedge -90+180/12)) +
  ggwedge:::geom_pie_label(aes(label = after_stat(minor)),
                 r_prop = .5, size = 4.5) +
* theme_void()
```
]

.panel2-feature-auto[
![](wedge-circle-of-5ths_files/figure-html/feature_auto_15_output-1.png)
]

---
count: false

.panel1-feature-auto[

```r
library(tidyverse)
major = c("C", "G", "D", "A", "E", "B",
            "F#/Gb","C#/Db", "G#/Ab", "Eb", "Bb", "F")
minor = c("Am", "Em", "Bm", "F#m", "C#m", "G#m", "Ebm",
            "Bbm", "Fm", "Cm", "Gm", "Dm")

major_roman = c("I", "V", "II", "VI", "III", "VII", rep("",5), "IV")

major %>%
  tibble(minor) %>%
  ggplot() +
  aes(fill = major) +
  ggwedge:::geom_pie(show.legend = F,
                     color = "black",
                     alpha = .4,
                     linewidth = .1) +
  aes(r = 1) +
  coord_polar(start = -pi/12) +
  ggwedge:::geom_pie_label(aes(label = after_stat(major)),
                 r_prop = .85, size = 6) +
  aes(angle = after_stat(angle_wedge -90+180/12)) +
  ggwedge:::geom_pie_label(aes(label = after_stat(minor)),
                 r_prop = .5, size = 4.5) +
  theme_void() +

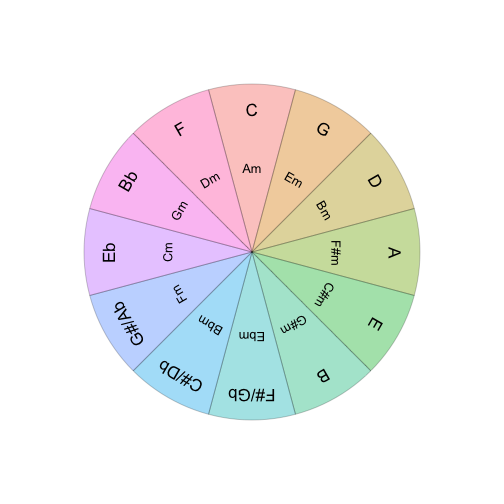

* geom_hline(yintercept = 1.2, alpha = 0)
```
]

.panel2-feature-auto[
![](wedge-circle-of-5ths_files/figure-html/feature_auto_16_output-1.png)
]

<style>
.panel1-feature-auto {
  color: black;
  width: 49%;
  hight: 32%;
  float: left;
  padding-left: 1%;
  font-size: 80%
}
.panel2-feature-auto {
  color: black;
  width: 49%;
  hight: 32%;
  float: left;
  padding-left: 1%;
  font-size: 80%
}
.panel3-feature-auto {
  color: black;
  width: NA%;
  hight: 33%;
  float: left;
  padding-left: 1%;
  font-size: 80%
}
</style>

---

---

count: false

.panel1-feature2-auto[

```r
*last_plot()
```
]

.panel2-feature2-auto[
![](wedge-circle-of-5ths_files/figure-html/feature2_auto_01_output-1.png)
]

---
count: false

.panel1-feature2-auto[

```r
last_plot() +

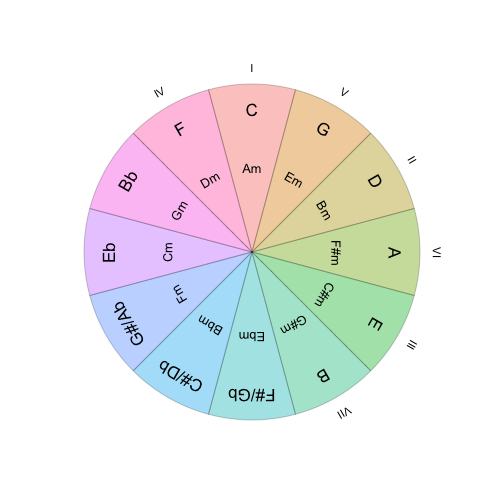

* ggwedge:::geom_pie_label(show.legend = F,
*          color = "black", r_prop = 1.1,
*          aes(label = after_stat(major_roman)),
*          linewidth = .1)
```
]

.panel2-feature2-auto[
![](wedge-circle-of-5ths_files/figure-html/feature2_auto_02_output-1.png)
]

---
count: false

.panel1-feature2-auto[

```r
last_plot() +
  ggwedge:::geom_pie_label(show.legend = F,
           color = "black", r_prop = 1.1,
           aes(label = after_stat(major_roman)),
           linewidth = .1) +

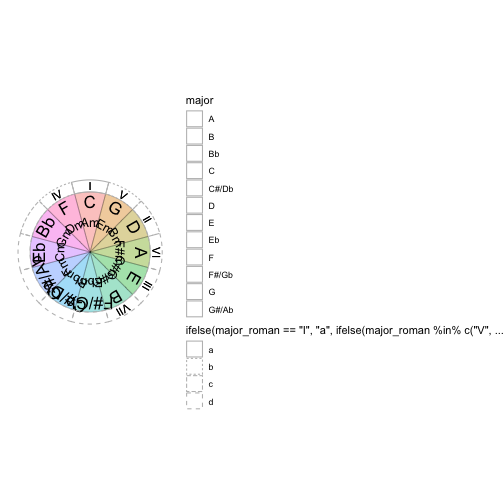

* ggwedge:::geom_pie(alpha = 0, color = "grey",
*                    aes(r0 = 1, r = 1.2,
*                        lty = after_stat(ifelse(major_roman == "I", "a",
*                                                      ifelse(major_roman %in% c("V", "IV"), "b",
*                                                             ifelse(major %in% c("Bb", "D"), "c", "d")))))
*                    )
```
]

.panel2-feature2-auto[
![](wedge-circle-of-5ths_files/figure-html/feature2_auto_03_output-1.png)
]

---
count: false

.panel1-feature2-auto[

```r
last_plot() +
  ggwedge:::geom_pie_label(show.legend = F,
           color = "black", r_prop = 1.1,
           aes(label = after_stat(major_roman)),
           linewidth = .1) +
  ggwedge:::geom_pie(alpha = 0, color = "grey",
                     aes(r0 = 1, r = 1.2,
                         lty = after_stat(ifelse(major_roman == "I", "a",
                                                       ifelse(major_roman %in% c("V", "IV"), "b",
                                                              ifelse(major %in% c("Bb", "D"), "c", "d")))))
                     ) +
* theme(legend.position = "none")
```
]

.panel2-feature2-auto[
![](wedge-circle-of-5ths_files/figure-html/feature2_auto_04_output-1.png)
]

<style>
.panel1-feature2-auto {
  color: black;
  width: 49%;
  hight: 32%;
  float: left;
  padding-left: 1%;
  font-size: 80%
}
.panel2-feature2-auto {
  color: black;
  width: 49%;
  hight: 32%;
  float: left;
  padding-left: 1%;
  font-size: 80%
}
.panel3-feature2-auto {
  color: black;
  width: NA%;
  hight: 33%;
  float: left;
  padding-left: 1%;
  font-size: 80%
}
</style>

---

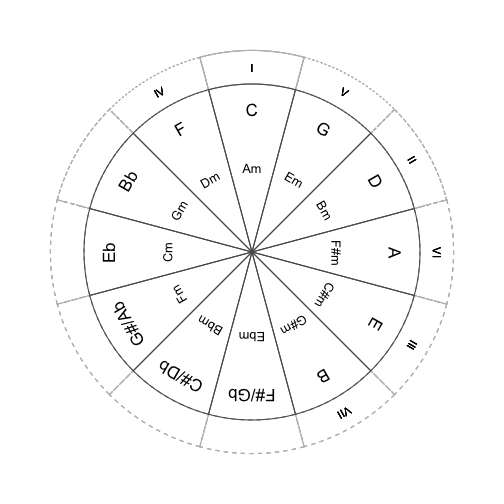

# Go black and white...

```r
ggwipe::last_plot_wipe(1) +
  ggwedge:::geom_pie(alpha = 0,
                     color = "grey35")
```

![](wedge-circle-of-5ths_files/figure-html/unnamed-chunk-1-1.png)

---

### Contribute

- https://github.com/EvaMaeRey/ggcirclepack

---

### Check out {packcircles} which does the computation in ggcirclepack

- https://github.com/mbedward/packcircles

---

### Check out flipbookr, used to build this featurette

- https://github.com/EvaMaeRey/flipbookr
- discussion: https://github.com/EvaMaeRey/flipbookr/blob/master/docs/draft_jasa_submission.pdf

---

### Check out more featurettes

- https://EvaMaeRey.github.io/featurette

<style type="text/css">
.remark-code{line-height: 1.5; font-size: 100%}
@media print {
  .has-continuation {
    display: block;
  }
}
</style>
