# .right.large[Intro to Network Analysis/Visualization]
### .right.large[Korbel School of International Studies<br>Evangeline 'Gina' Reynolds<br>2020-05-11]
<br>
<br>
<br>
<br>
<br>
<br>
<br>
<br>
<br>
<br>
<br>

#### Photo Credit: Pietro Jeng

---

## School of *Inter*national Studies

## International *Relations*

## *Social* Science

## PhD reading group 2019:  Networks analysis

---

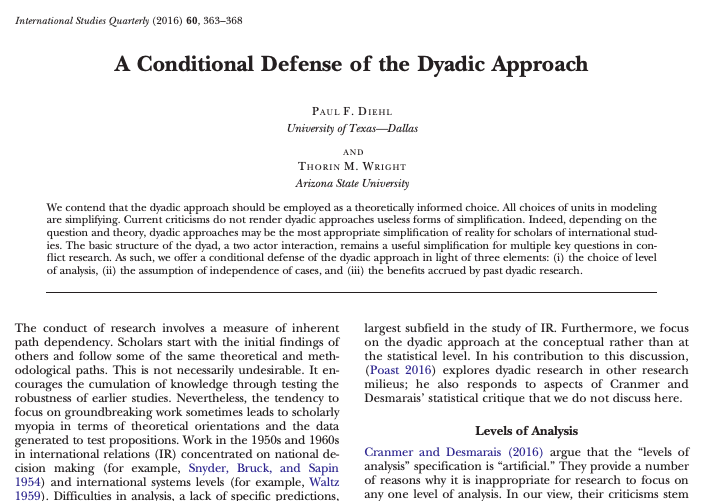

![](images_for_lecture/network_analysis_ngram copy.png)

---

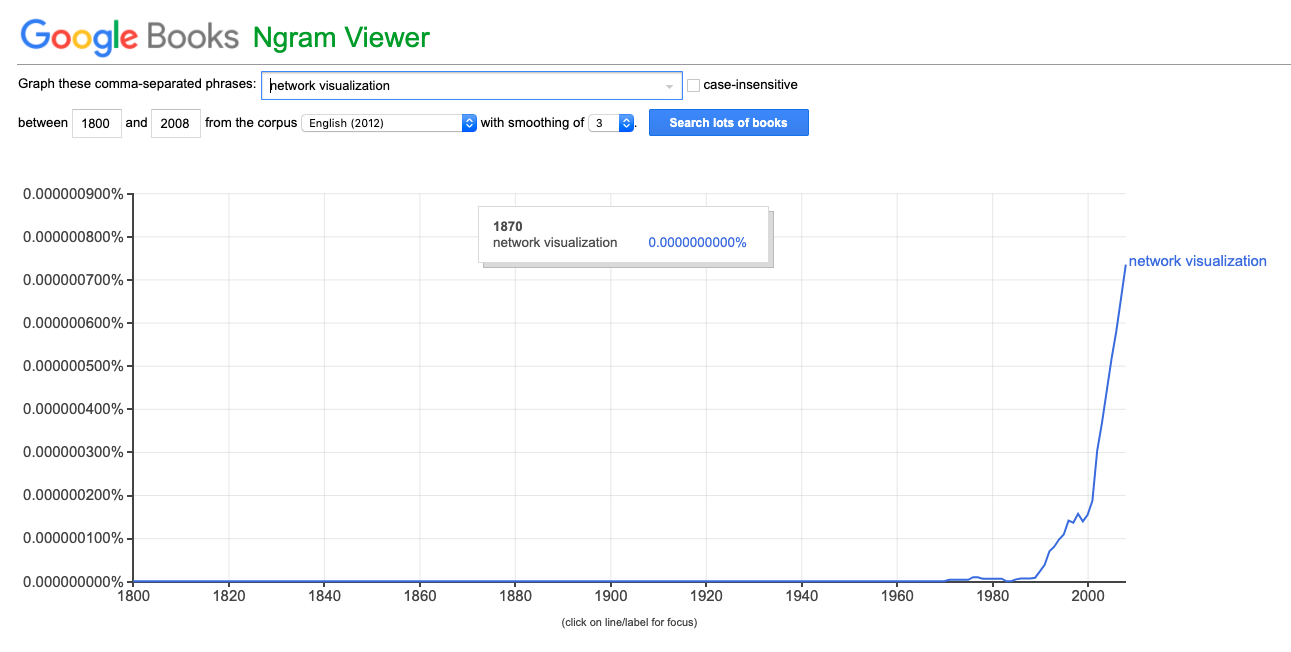

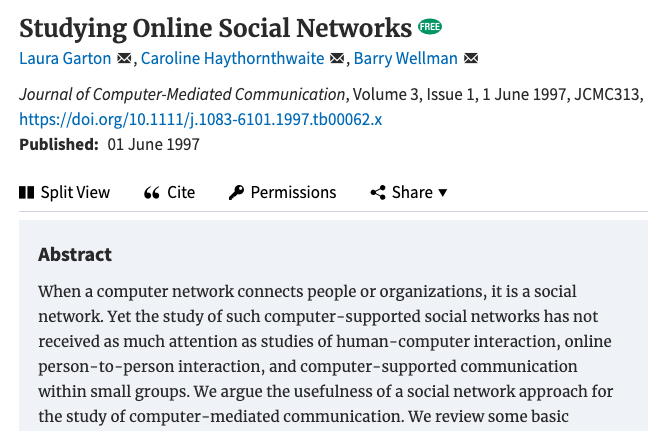

![](images_for_lecture/network_visualization_ngram copy.png)

---

## *The promise of network analysis is the placement of significance on the relationships between actors, rather than seeing actors as isolated entities.* &ndash; Jesse Sadler

## *Show me your company and I'll tell you who you are.* &ndash; A proverb quoted in Cervantes' Don Quixote

---

```r
*library(ggraph)
```
]

.panel2-data_prep0-auto[

]

---
count: false

```r
library(ggraph)
*library(tidygraph)
```
]

.panel2-data_prep0-auto[

]

---
count: false

```r
library(ggraph)
library(tidygraph)
*tidygraph::create_notable(name =
*                           'zachary')
```
]

.panel2-data_prep0-auto[

```
# A tbl_graph: 34 nodes and 78 edges
#
# An undirected simple graph with 1 component
#
# Node Data: 34 × 0 (active)
# … with 28 more rows
#
# Edge Data: 78 × 2
   from    to
  <int> <int>
1     1     2
2     1     3
3     1     4
# … with 75 more rows
```
]

---
count: false

```r
library(ggraph)
library(tidygraph)
tidygraph::create_notable(name =
                            'zachary') %>%
* mutate(id = 1:n())
```
]

.panel2-data_prep0-auto[

```
# A tbl_graph: 34 nodes and 78 edges
#
# An undirected simple graph with 1 component
#
# Node Data: 34 × 1 (active)
     id
  <int>
1     1
2     2
3     3
4     4
5     5
6     6
# … with 28 more rows
#
# Edge Data: 78 × 2
   from    to
  <int> <int>
1     1     2
2     1     3
3     1     4
# … with 75 more rows
```
]

---
count: false

```r
library(ggraph)
library(tidygraph)
tidygraph::create_notable(name =
                            'zachary') %>%
  mutate(id = 1:n()) ->
*dat_minimal
```
]

.panel2-data_prep0-auto[

]

---

## An article about computational science in a scientific publication is not the scholarship itself, it is merely advertising of the scholarship. The actual scholarship is ... complete set of instructions which generated the figures. &ndash; Buckheit and Donoho, 1995, Stanford statisticians

---

# Questions to ask:

### Is my network cohesive? Is it "dense"?

###  Are there important individuals within the network?

###  Are there communities within the network?

###  If I see fissure in the network, along what lines might I expect to see that?

---
class: inverse

# Density

### Number of connections out of total possible

```r
choose(34, 2)
```

```
[1] 561
```

$$ \frac{n!}{(n-k)!k!} $$

```r
# Density
78/562
```

```
[1] 0.13879
```

---
class: inverse, middle, center

# Visualizing networks

---

```r
*set.seed(9823)
```
]

.panel2-plot_karate0-auto[

]

---
count: false

```r
set.seed(9823)
*dat_minimal
```
]

.panel2-plot_karate0-auto[

---
count: false

```r
set.seed(9823)
dat_minimal %>%
* ggraph(layout = "randomly")
```
]

.panel2-plot_karate0-auto[
<img src="networks_presentation_files/figure-html/plot_karate0_auto_03_output-1.png" width="432" />
]

---
count: false

```r
set.seed(9823)
dat_minimal %>%
  ggraph(layout = "randomly") +
* geom_node_point()
```
]

.panel2-plot_karate0-auto[
<img src="networks_presentation_files/figure-html/plot_karate0_auto_04_output-1.png" width="432" />
]

---
count: false

```r
set.seed(9823)
dat_minimal %>%
  ggraph(layout = "randomly") +
  geom_node_point() +
* geom_edge_link(color = "orange")
```
]

.panel2-plot_karate0-auto[
<img src="networks_presentation_files/figure-html/plot_karate0_auto_05_output-1.png" width="432" />
]

---
count: false

```r
set.seed(9823)
dat_minimal %>%
  ggraph(layout = "randomly") +
  geom_node_point() +
  geom_edge_link(color = "orange") +
* geom_node_point()
```
]

.panel2-plot_karate0-auto[
<img src="networks_presentation_files/figure-html/plot_karate0_auto_06_output-1.png" width="432" />
]

---
count: false

```r
set.seed(9823)
dat_minimal %>%
  ggraph(layout = "randomly") +
  geom_node_point() +
  geom_edge_link(color = "orange") +
  geom_node_point() +
* geom_node_point(size = 8,
*                 shape = 21,
*                 fill = "steelblue")
```
]

.panel2-plot_karate0-auto[
<img src="networks_presentation_files/figure-html/plot_karate0_auto_07_output-1.png" width="432" />
]

---
count: false

```r
set.seed(9823)
dat_minimal %>%
  ggraph(layout = "randomly") +
  geom_node_point() +
  geom_edge_link(color = "orange") +
  geom_node_point() +
  geom_node_point(size = 8,
                  shape = 21,
                  fill = "steelblue") +
* geom_node_text(size = 2,
*                color = "grey97",
*                aes(label = id)
*                )
```
]

.panel2-plot_karate0-auto[
<img src="networks_presentation_files/figure-html/plot_karate0_auto_08_output-1.png" width="432" />
]

---
count: false

```r
set.seed(9823)
dat_minimal %>%
  ggraph(layout = "randomly") +
  geom_node_point() +
  geom_edge_link(color = "orange") +
  geom_node_point() +
  geom_node_point(size = 8,
                  shape = 21,
                  fill = "steelblue") +
  geom_node_text(size = 2,
                 color = "grey97",
                 aes(label = id)
                 ) +
* theme(plot.margin = margin(.5, .5, .5, .5, "cm"))
```
]

.panel2-plot_karate0-auto[
<img src="networks_presentation_files/figure-html/plot_karate0_auto_09_output-1.png" width="432" />
]

---
class: inverse, middle, center

# Layout

---

```r
dat_minimal %>%
* ggraph(layout = "randomly") +
  geom_edge_link(color = "orange") +
  geom_node_point() +
  geom_node_point(size = 8,
                  shape = 21,
                  fill = "steelblue") +
  geom_node_text(size = 2,
                 color = "grey97",
                 aes(label = id)
                 ) +
  scale_fill_viridis(discrete = T, option = 2) +
  labs(fill = NULL, color = NULL) +
  theme(plot.margin = margin(.5, .5, .5, .5, "cm"))
```
]

.panel2-layout-rotate[
<img src="networks_presentation_files/figure-html/layout_rotate_01_output-1.png" width="432" />
]

---
count: false

```r
dat_minimal %>%
* ggraph(layout = "circle") +
  geom_edge_link(color = "orange") +
  geom_node_point() +
  geom_node_point(size = 8,
                  shape = 21,
                  fill = "steelblue") +
  geom_node_text(size = 2,
                 color = "grey97",
                 aes(label = id)
                 ) +
  scale_fill_viridis(discrete = T, option = 2) +
  labs(fill = NULL, color = NULL) +
  theme(plot.margin = margin(.5, .5, .5, .5, "cm"))
```
]

.panel2-layout-rotate[
<img src="networks_presentation_files/figure-html/layout_rotate_02_output-1.png" width="432" />
]

---
count: false

```r
dat_minimal %>%
* ggraph(layout = "sphere") +
  geom_edge_link(color = "orange") +
  geom_node_point() +
  geom_node_point(size = 8,
                  shape = 21,
                  fill = "steelblue") +
  geom_node_text(size = 2,
                 color = "grey97",
                 aes(label = id)
                 ) +
  scale_fill_viridis(discrete = T, option = 2) +
  labs(fill = NULL, color = NULL) +
  theme(plot.margin = margin(.5, .5, .5, .5, "cm"))
```
]

.panel2-layout-rotate[
<img src="networks_presentation_files/figure-html/layout_rotate_03_output-1.png" width="432" />
]

---
count: false

```r
dat_minimal %>%
* ggraph(layout = "kk") +
  geom_edge_link(color = "orange") +
  geom_node_point() +
  geom_node_point(size = 8,
                  shape = 21,
                  fill = "steelblue") +
  geom_node_text(size = 2,
                 color = "grey97",
                 aes(label = id)
                 ) +
  scale_fill_viridis(discrete = T, option = 2) +
  labs(fill = NULL, color = NULL) +
  theme(plot.margin = margin(.5, .5, .5, .5, "cm"))
```
]

.panel2-layout-rotate[
<img src="networks_presentation_files/figure-html/layout_rotate_04_output-1.png" width="432" />
]

---
count: false

```r
dat_minimal %>%
* ggraph(layout = "fr") +
  geom_edge_link(color = "orange") +
  geom_node_point() +
  geom_node_point(size = 8,
                  shape = 21,
                  fill = "steelblue") +
  geom_node_text(size = 2,
                 color = "grey97",
                 aes(label = id)
                 ) +
  scale_fill_viridis(discrete = T, option = 2) +
  labs(fill = NULL, color = NULL) +
  theme(plot.margin = margin(.5, .5, .5, .5, "cm"))
```
]

.panel2-layout-rotate[
<img src="networks_presentation_files/figure-html/layout_rotate_05_output-1.png" width="432" />
]

---

```r
set.seed(0417)
igraph::sample_pa(100, directed = T)  %>%
* ggraph(layout = "kk") +
  geom_edge_link(color = "orange") +
  geom_node_point(size = 5,
                  color = "steelblue",
                  alpha = .8)
```
]

.panel2-spread-rotate[
<img src="networks_presentation_files/figure-html/spread_rotate_01_output-1.png" width="432" />
]

---
count: false

```r
set.seed(0417)
igraph::sample_pa(100, directed = T)  %>%
* ggraph(layout = "fr") +
  geom_edge_link(color = "orange") +
  geom_node_point(size = 5,
                  color = "steelblue",
                  alpha = .8)
```
]

.panel2-spread-rotate[
<img src="networks_presentation_files/figure-html/spread_rotate_02_output-1.png" width="432" />
]

---

### "Mapping Networks of Terrorist Cells" Valdis E. Krebs

### *This paper looks at the difficulty in mapping covert networks. Analyzing networks after an event is fairly easy for prosecution purposes. Mapping covert networks to prevent criminal activity is much more difficult. We examine the network surrounding the tragic events of September 11th, 2001. Through public data we are able to map a portion of the network centered around the 19 dead hijackers. *

http://ecsocman.hse.ru/data/517/132/1231/mappingterroristnetworks.pdf

---

# Krebs Questions...

### What type of layout does it seem like Krebs is using? Is it force directed, or some geometric layout like circle or sphere?

### Also look at Table 3.  What has been calculated in this table?  What do you think these calculations try to measure/capture about the individuals?

---

---

![](images_for_lecture/pederson_calculate_centrality.png)

---
class: center, middle, inverse

# Centrality

## Degree

## Betweenness

## Closeness

---

## Degree Centrality

### "Incidence upon"

### Who do you have immediate contact with?

---

## Closeness Centrality

### "The reciprocal of the farness" Bavelas (1950)

#### for a node 1, count the number of edges that must be traversed (shortest path) to get to node 2, to node 3, to node 4, etc...

#### Add these.

#### Take reciprocal

$$ C_c(x) = \frac{1}{\sum_yd(y,x)}   $$

---

## Betweenness Centrality

#### Betweenness centrality quantifies the number of times a node acts as a bridge along the shortest path between two other nodes.

#### take each pair of nodes in a network

#### identify the shortest path between them

#### for each node in the network count the number of time it is an "on-the-way" nodes

---

$$ C_B(x) = \frac{total~number~of~shortest~paths~passing~ throught~node}{total~number~of~shortest~paths~in~network}   $$

---

```r
*dat_minimal
```
]

.panel2-calculations-auto[

---
count: false

```r
dat_minimal %>%
* activate(nodes)
```
]

.panel2-calculations-auto[

---
count: false

```r
dat_minimal %>%
  activate(nodes) %>%
* mutate(degree =
*          centrality_degree())
```
]

.panel2-calculations-auto[

```
# A tbl_graph: 34 nodes and 78 edges
#
# An undirected simple graph with 1 component
#
# Node Data: 34 × 2 (active)
     id degree
  <int>  <dbl>
1     1     16
2     2      9
3     3     10
4     4      6
5     5      3
6     6      4
# … with 28 more rows
#
# Edge Data: 78 × 2
   from    to
  <int> <int>
1     1     2
2     1     3
3     1     4
# … with 75 more rows
```
]

---
count: false

```r
dat_minimal %>%
  activate(nodes) %>%
  mutate(degree =
           centrality_degree()) %>%
* mutate(close = centrality_closeness())
```
]

.panel2-calculations-auto[

```
# A tbl_graph: 34 nodes and 78 edges
#
# An undirected simple graph with 1 component
#
# Node Data: 34 × 3 (active)
     id degree  close
  <int>  <dbl>  <dbl>
1     1     16 0.0172
2     2      9 0.0147
3     3     10 0.0169
4     4      6 0.0141
5     5      3 0.0115
6     6      4 0.0116
# … with 28 more rows
#
# Edge Data: 78 × 2
   from    to
  <int> <int>
1     1     2
2     1     3
3     1     4
# … with 75 more rows
```
]

---
count: false

```r
dat_minimal %>%
  activate(nodes) %>%
  mutate(degree =
           centrality_degree()) %>%
  mutate(close = centrality_closeness()) %>%
* mutate(between =
*          centrality_betweenness())
```
]

.panel2-calculations-auto[

```
# A tbl_graph: 34 nodes and 78 edges
#
# An undirected simple graph with 1 component
#
# Node Data: 34 × 4 (active)
     id degree  close between
  <int>  <dbl>  <dbl>   <dbl>
1     1     16 0.0172 231.
2     2      9 0.0147  28.5
3     3     10 0.0169  75.9
4     4      6 0.0141   6.29
5     5      3 0.0115   0.333
6     6      4 0.0116  15.8
# … with 28 more rows
#
# Edge Data: 78 × 2
   from    to
  <int> <int>
1     1     2
2     1     3
3     1     4
# … with 75 more rows
```
]

---
count: false

```r
dat_minimal %>%
  activate(nodes) %>%
  mutate(degree =
           centrality_degree()) %>%
  mutate(close = centrality_closeness()) %>%
  mutate(between =
           centrality_betweenness()) %>%
*mutate(clique = as.factor(group_infomap()))
```
]

.panel2-calculations-auto[

```
# A tbl_graph: 34 nodes and 78 edges
#
# An undirected simple graph with 1 component
#
# Node Data: 34 × 5 (active)
     id degree  close between clique
  <int>  <dbl>  <dbl>   <dbl> <fct>
1     1     16 0.0172 231.    2
2     2      9 0.0147  28.5   2
3     3     10 0.0169  75.9   2
4     4      6 0.0141   6.29  2
5     5      3 0.0115   0.333 3
6     6      4 0.0116  15.8   3
# … with 28 more rows
#
# Edge Data: 78 × 2
   from    to
  <int> <int>
1     1     2
2     1     3
3     1     4
# … with 75 more rows
```
]

---
count: false

```r
dat_minimal %>%
  activate(nodes) %>%
  mutate(degree =
           centrality_degree()) %>%
  mutate(close = centrality_closeness()) %>%
  mutate(between =
           centrality_betweenness()) %>%
 mutate(clique = as.factor(group_infomap())) ->
*dat_centrality_calc
```
]

.panel2-calculations-auto[

]

---

# Network "Decoration"

#### representing features of nodes or edges with variation in aesthetics (color, size, linewidth, line type)

#### How might we decorate our plot with centrality measures?

---

```r
dat_centrality_calc %>%
  ggraph() +
  geom_edge_link(color = "orange") +
  geom_node_point(aes(
*   size = 5,
  ),
  fill = "steelblue",
  shape = 21)  +
  geom_node_text(size = 3.5,
                 color = "grey92",
                 aes(label = id)
                 ) +
  scale_fill_viridis(discrete = T, option = 2) +
  labs(fill = NULL, color = NULL) +
  scale_size(range = c(2,8), trans = "sqrt") +
  theme_void(base_family = "Courier",
             base_size = 20) +
  theme(plot.margin = margin(.5, .5, .5, .5, "cm"))
```
]

.panel2-centrality-rotate[
<img src="networks_presentation_files/figure-html/centrality_rotate_01_output-1.png" width="432" />
]

---
count: false

```r
dat_centrality_calc %>%
  ggraph() +
  geom_edge_link(color = "orange") +
  geom_node_point(aes(
*   size = degree,
  ),
  fill = "steelblue",
  shape = 21)  +
  geom_node_text(size = 3.5,
                 color = "grey92",
                 aes(label = id)
                 ) +
  scale_fill_viridis(discrete = T, option = 2) +
  labs(fill = NULL, color = NULL) +
  scale_size(range = c(2,8), trans = "sqrt") +
  theme_void(base_family = "Courier",
             base_size = 20) +
  theme(plot.margin = margin(.5, .5, .5, .5, "cm"))
```
]

.panel2-centrality-rotate[
<img src="networks_presentation_files/figure-html/centrality_rotate_02_output-1.png" width="432" />
]

---
count: false

```r
dat_centrality_calc %>%
  ggraph() +
  geom_edge_link(color = "orange") +
  geom_node_point(aes(
*   size = close
  ),
  fill = "steelblue",
  shape = 21)  +
  geom_node_text(size = 3.5,
                 color = "grey92",
                 aes(label = id)
                 ) +
  scale_fill_viridis(discrete = T, option = 2) +
  labs(fill = NULL, color = NULL) +
  scale_size(range = c(2,8), trans = "sqrt") +
  theme_void(base_family = "Courier",
             base_size = 20) +
  theme(plot.margin = margin(.5, .5, .5, .5, "cm"))
```
]

.panel2-centrality-rotate[
<img src="networks_presentation_files/figure-html/centrality_rotate_03_output-1.png" width="432" />
]

---
count: false

```r
dat_centrality_calc %>%
  ggraph() +
  geom_edge_link(color = "orange") +
  geom_node_point(aes(
*   size = between, #ROTATE
  ),
  fill = "steelblue",
  shape = 21)  +
  geom_node_text(size = 3.5,
                 color = "grey92",
                 aes(label = id)
                 ) +
  scale_fill_viridis(discrete = T, option = 2) +
  labs(fill = NULL, color = NULL) +
  scale_size(range = c(2,8), trans = "sqrt") +
  theme_void(base_family = "Courier",
             base_size = 20) +
  theme(plot.margin = margin(.5, .5, .5, .5, "cm"))
```
]

.panel2-centrality-rotate[
<img src="networks_presentation_files/figure-html/centrality_rotate_04_output-1.png" width="432" />
]

---

# Detecting communities/cliques

---

```r
*dat_centrality_calc
```
]

.panel2-community-auto[

---
count: false

```r
dat_centrality_calc %>%
* ggraph()
```
]

.panel2-community-auto[
<img src="networks_presentation_files/figure-html/community_auto_02_output-1.png" width="432" />
]

---
count: false

```r
dat_centrality_calc %>%
  ggraph() +
* geom_edge_link(color = "orange")
```
]

.panel2-community-auto[
<img src="networks_presentation_files/figure-html/community_auto_03_output-1.png" width="432" />
]

---
count: false

```r
dat_centrality_calc %>%
  ggraph() +
  geom_edge_link(color = "orange") +
* geom_node_point(
*   aes(fill = clique,
*       size = degree),
*   shape = 21)
```
]

.panel2-community-auto[
<img src="networks_presentation_files/figure-html/community_auto_04_output-1.png" width="432" />
]

---
count: false

```r
dat_centrality_calc %>%
  ggraph() +
  geom_edge_link(color = "orange") +
  geom_node_point(
    aes(fill = clique,
        size = degree),
    shape = 21)  +
* ggforce::geom_mark_hull(aes(x = x,
*                             y = y,
*                             fill = clique))
```
]

.panel2-community-auto[
<img src="networks_presentation_files/figure-html/community_auto_05_output-1.png" width="432" />
]

---
count: false

```r
dat_centrality_calc %>%
  ggraph() +
  geom_edge_link(color = "orange") +
  geom_node_point(
    aes(fill = clique,
        size = degree),
    shape = 21)  +
  ggforce::geom_mark_hull(aes(x = x,
                              y = y,
                              fill = clique)) +
* scale_fill_viridis(discrete = T, option = 2)
```
]

.panel2-community-auto[
<img src="networks_presentation_files/figure-html/community_auto_06_output-1.png" width="432" />
]

---
count: false

---
count: false

---
count: false

```r
dat_centrality_calc %>%
  ggraph() +
  geom_edge_link(color = "orange") +
  geom_node_point(
    aes(fill = clique,
        size = degree),
    shape = 21)  +
  ggforce::geom_mark_hull(aes(x = x,
                              y = y,
                              fill = clique)) +
  scale_fill_viridis(discrete = T, option = 2) +
  labs(fill = NULL, color = NULL) +
  scale_size(range = c(2,8), trans = "sqrt") +
* theme_void(base_family = "Courier",
*            base_size = 20)
```
]

.panel2-community-auto[
<img src="networks_presentation_files/figure-html/community_auto_09_output-1.png" width="432" />
]

---
count: false

```r
dat_centrality_calc %>%
  ggraph() +
  geom_edge_link(color = "orange") +
  geom_node_point(
    aes(fill = clique,
        size = degree),
    shape = 21)  +
  ggforce::geom_mark_hull(aes(x = x,
                              y = y,
                              fill = clique)) +
  scale_fill_viridis(discrete = T, option = 2) +
  labs(fill = NULL, color = NULL) +
  scale_size(range = c(2,8), trans = "sqrt") +
  theme_void(base_family = "Courier",
             base_size = 20) +
* theme(plot.background =
*         element_rect(fill = "steelblue4",
*                      color = "grey90"))
```
]

.panel2-community-auto[
<img src="networks_presentation_files/figure-html/community_auto_10_output-1.png" width="432" />
]

---
count: false

```r
dat_centrality_calc %>%
  ggraph() +
  geom_edge_link(color = "orange") +
  geom_node_point(
    aes(fill = clique,
        size = degree),
    shape = 21)  +
  ggforce::geom_mark_hull(aes(x = x,
                              y = y,
                              fill = clique)) +
  scale_fill_viridis(discrete = T, option = 2) +
  labs(fill = NULL, color = NULL) +
  scale_size(range = c(2,8), trans = "sqrt") +
  theme_void(base_family = "Courier",
             base_size = 20) +
  theme(plot.background =
          element_rect(fill = "steelblue4",
                       color = "grey90")) +
* theme(plot.margin = margin(.5, .5, .5, .5, "cm"))
```
]

.panel2-community-auto[
<img src="networks_presentation_files/figure-html/community_auto_11_output-1.png" width="432" />
]

---

# Karate Club

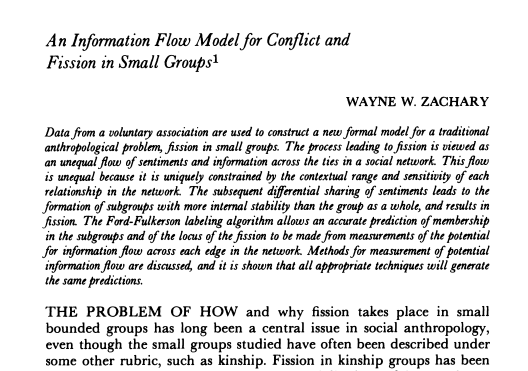

![](images_for_lecture/zachary_karate_club_paper copy.png)

---

```r
*dat
```
]

.panel2-plot_karate-auto[

```
# A tbl_graph: 34 nodes and 78 edges
#
# An undirected simple graph with 1 component
#
# Node Data: 34 × 3 (active)
     id leader betweenness
  <int> <fct>        <dbl>
1     1 Mr. Hi     231.
2     2 Others      28.5
3     3 Others      75.9
4     4 Others       6.29
5     5 Others       0.333
6     6 Others      15.8
# … with 28 more rows
#
# Edge Data: 78 × 2
   from    to
  <int> <int>
1     1     2
2     1     3
3     1     4
# … with 75 more rows
```
]

---
count: false

```r
dat %>%
* ggraph()
```
]

.panel2-plot_karate-auto[
<img src="networks_presentation_files/figure-html/plot_karate_auto_02_output-1.png" width="432" />
]

---
count: false

```r
dat %>%
  ggraph() +
* geom_edge_link(color = "orange")
```
]

.panel2-plot_karate-auto[
<img src="networks_presentation_files/figure-html/plot_karate_auto_03_output-1.png" width="432" />
]

---
count: false

```r
dat %>%
  ggraph() +
  geom_edge_link(color = "orange") +
* geom_node_point()
```
]

.panel2-plot_karate-auto[
<img src="networks_presentation_files/figure-html/plot_karate_auto_04_output-1.png" width="432" />
]

---
count: false

```r
dat %>%
  ggraph() +
  geom_edge_link(color = "orange") +
  geom_node_point() +
* geom_node_point(aes(fill = leader,
*                     size = betweenness),
*                 shape = 21)
```
]

.panel2-plot_karate-auto[
<img src="networks_presentation_files/figure-html/plot_karate_auto_05_output-1.png" width="432" />
]

---
count: false

```r
dat %>%
  ggraph() +
  geom_edge_link(color = "orange") +
  geom_node_point() +
  geom_node_point(aes(fill = leader,
                      size = betweenness),
                  shape = 21) +
* scale_fill_viridis(discrete = T, option = 2)
```
]

.panel2-plot_karate-auto[
<img src="networks_presentation_files/figure-html/plot_karate_auto_06_output-1.png" width="432" />
]

---
count: false

```r
dat %>%
  ggraph() +
  geom_edge_link(color = "orange") +
  geom_node_point() +
  geom_node_point(aes(fill = leader,
                      size = betweenness),
                  shape = 21) +
  scale_fill_viridis(discrete = T, option = 2) +
* labs(fill = NULL, color = NULL)
```
]

.panel2-plot_karate-auto[
<img src="networks_presentation_files/figure-html/plot_karate_auto_07_output-1.png" width="432" />
]

---
count: false

---
count: false

```r
dat %>%
  ggraph() +
  geom_edge_link(color = "orange") +
  geom_node_point() +
  geom_node_point(aes(fill = leader,
                      size = betweenness),
                  shape = 21) +
  scale_fill_viridis(discrete = T, option = 2) +
  labs(fill = NULL, color = NULL) +
  scale_size(range = c(2,8), trans = "sqrt") +
* theme_void(base_family = "Courier",
*            base_size = 20)
```
]

.panel2-plot_karate-auto[
<img src="networks_presentation_files/figure-html/plot_karate_auto_09_output-1.png" width="432" />
]

---
count: false

```r
dat %>%
  ggraph() +
  geom_edge_link(color = "orange") +
  geom_node_point() +
  geom_node_point(aes(fill = leader,
                      size = betweenness),
                  shape = 21) +
  scale_fill_viridis(discrete = T, option = 2) +
  labs(fill = NULL, color = NULL) +
  scale_size(range = c(2,8), trans = "sqrt") +
  theme_void(base_family = "Courier",
             base_size = 20) +
* theme(plot.background =
*         element_rect(fill = "steelblue4",
*                      color = "grey90"))
```
]

.panel2-plot_karate-auto[
<img src="networks_presentation_files/figure-html/plot_karate_auto_10_output-1.png" width="432" />
]

---
count: false

```r
dat %>%
  ggraph() +
  geom_edge_link(color = "orange") +
  geom_node_point() +
  geom_node_point(aes(fill = leader,
                      size = betweenness),
                  shape = 21) +
  scale_fill_viridis(discrete = T, option = 2) +
  labs(fill = NULL, color = NULL) +
  scale_size(range = c(2,8), trans = "sqrt") +
  theme_void(base_family = "Courier",
             base_size = 20) +
  theme(plot.background =
          element_rect(fill = "steelblue4",
                       color = "grey90")) +
* theme(plot.margin = margin(.5, .5, .5, .5, "cm"))
```
]

.panel2-plot_karate-auto[
<img src="networks_presentation_files/figure-html/plot_karate_auto_11_output-1.png" width="432" />
]

---

# Karate Club Club

---

![](images_for_lecture/karate_club_club_pure_joy copy copy.png)

---

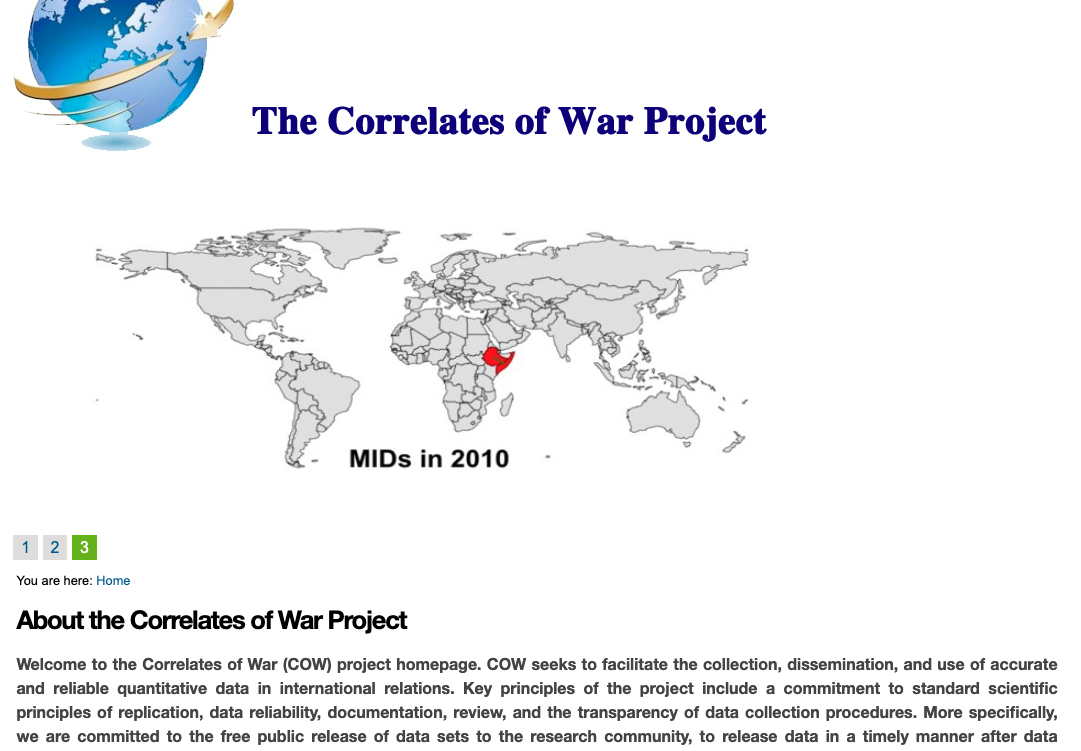

![](images_for_lecture/correlates_of_war_project copy.png)

## Another relational data paradigm

---

# Rise of the dyad

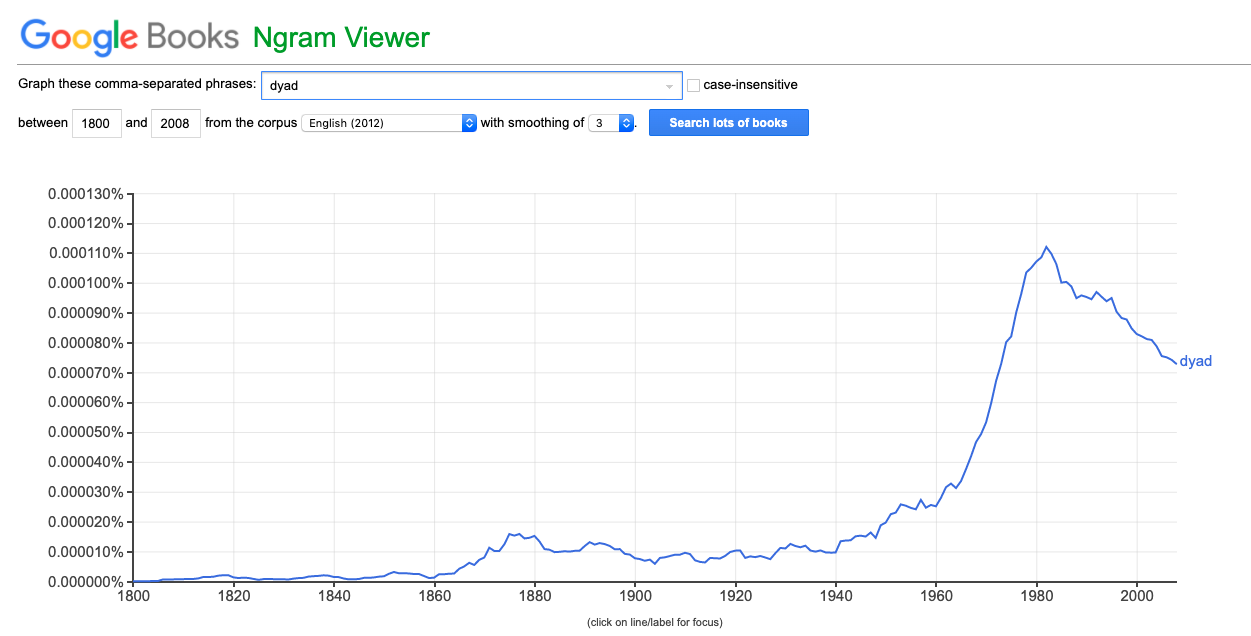

![](images_for_lecture/dyad_ngram copy.png)

---

```r
dat %>%
  as_tibble() ->
dat_node

dat %>%
  activate(edges) %>%
  as_tibble() ->
dat_edges

dat_edges %>%
  right_join(
    dat_node  %>%
  mutate(from = id))
```
]
.pull-right[

```
# A tibble: 86 × 5
    from    to    id leader betweenness
   <int> <int> <int> <fct>        <dbl>
 1     1     2     1 Mr. Hi        231.
 2     1     3     1 Mr. Hi        231.
 3     1     4     1 Mr. Hi        231.
 4     1     5     1 Mr. Hi        231.
 5     1     6     1 Mr. Hi        231.
 6     1     7     1 Mr. Hi        231.
 7     1     8     1 Mr. Hi        231.
 8     1     9     1 Mr. Hi        231.
 9     1    11     1 Mr. Hi        231.
10     1    12     1 Mr. Hi        231.
# … with 76 more rows
```
]

- unmodeled dependence
- independence of observations

---

# Emerging concerns about the use of dyads

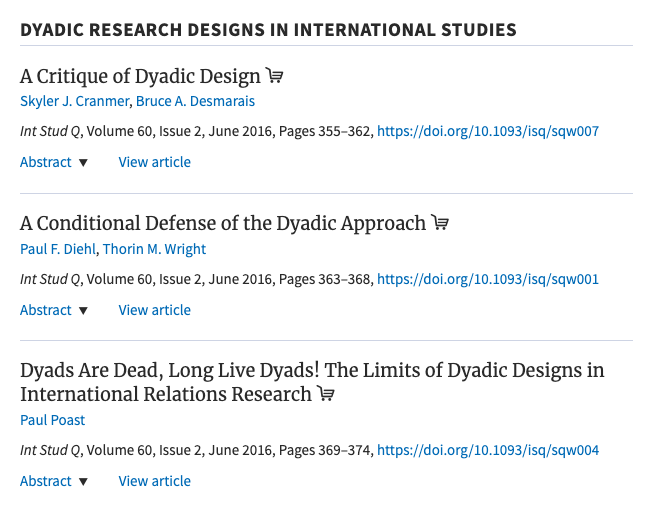

![](images_for_lecture/dyad_symposium copy.png)

---

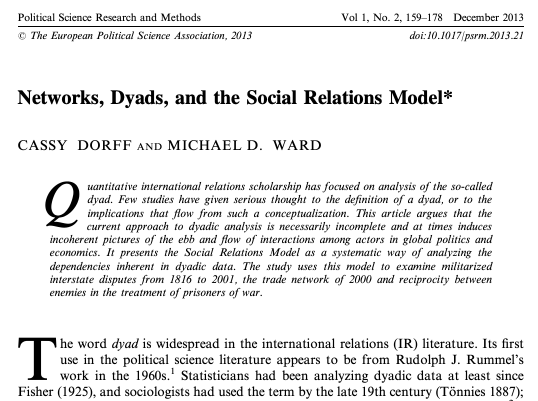

![](images_for_lecture/networks_dyads_dorff_ward copy.png){width = 80%}

---

![](images_for_lecture/dyadic_defense_diehl_wright copy.png)

---

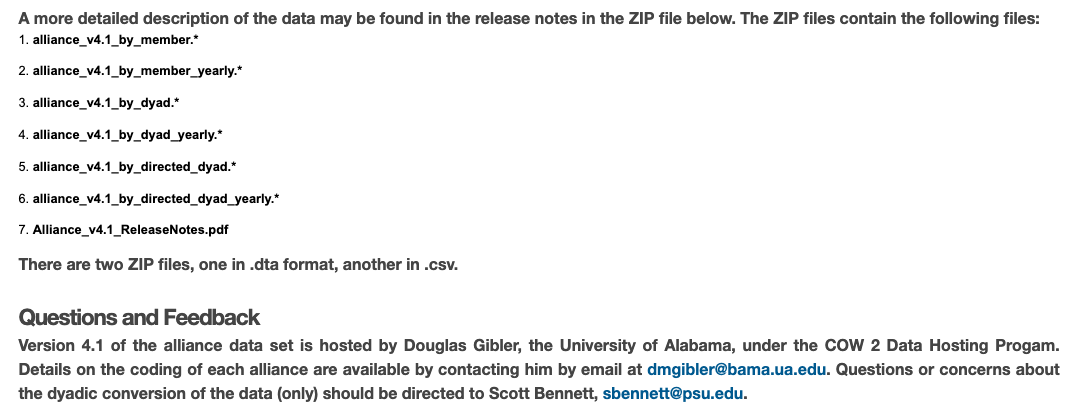

![](images_for_lecture/alliance_cow_dyadic_org copy.png)

---

## Networks Evolution

- Compare the COW defense alliance network of 1939 with that of 2012. How are they different?

- Then look at the alliance network of a single country - maybe Russia

- Now switch between "star" and "ego"  What do you thin an "ego network" is?

https://evangelinereynolds.shinyapps.io/AllianceNetworkVisualization/

---

# Room for improvement?

Bipartite network

"Hairball network"

---

# Contexts for Network Analysis

---

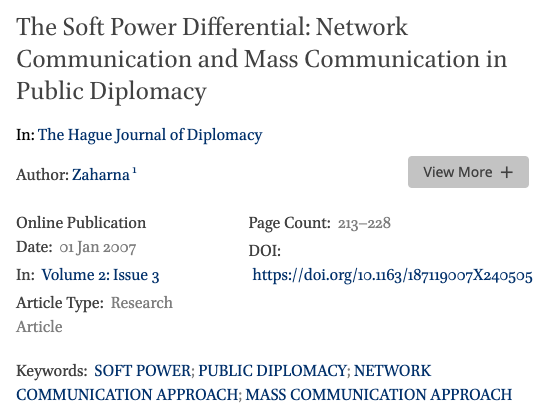

![](images_for_lecture/network_communication_diplomacy copy.png)
---

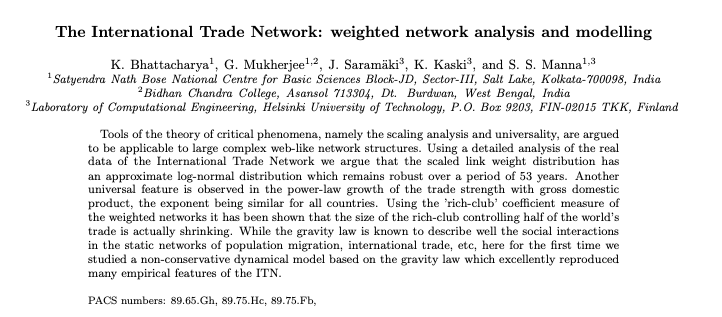

![](images_for_lecture/networks_trade_study.png)

---

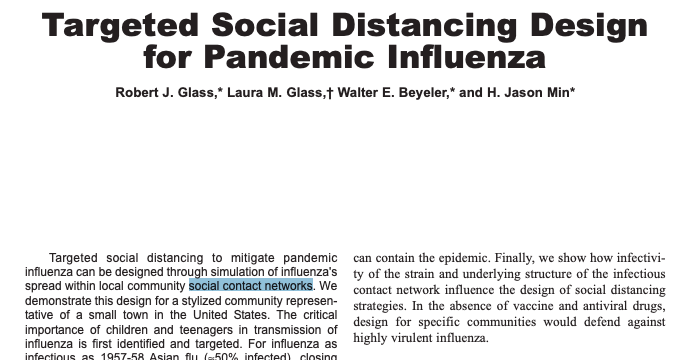

![](images_for_lecture/networks_flu_public_health.png)

---

![](images_for_lecture/networks_social_online.png)

---

# Complementarity to other methods/skills

---

### *Spatial* analysis

![](images_for_lecture/covid_spatial_network copy.png)

---

### dimention reduction, cluster analysis,

- Epidemiology, public health, and networks
- connection based on strain similarity

![](images_for_lecture/covid_genom_strains_dendogram copy.png)

---

```r
*datasets::mtcars
```
]

.panel2-dendro-auto[

```
                     mpg cyl  disp  hp drat    wt  qsec vs am gear carb
Mazda RX4           21.0   6 160.0 110 3.90 2.620 16.46  0  1    4    4
Mazda RX4 Wag       21.0   6 160.0 110 3.90 2.875 17.02  0  1    4    4
Datsun 710          22.8   4 108.0  93 3.85 2.320 18.61  1  1    4    1
Hornet 4 Drive      21.4   6 258.0 110 3.08 3.215 19.44  1  0    3    1
Hornet Sportabout   18.7   8 360.0 175 3.15 3.440 17.02  0  0    3    2
Valiant             18.1   6 225.0 105 2.76 3.460 20.22  1  0    3    1
Duster 360          14.3   8 360.0 245 3.21 3.570 15.84  0  0    3    4
Merc 240D           24.4   4 146.7  62 3.69 3.190 20.00  1  0    4    2
Merc 230            22.8   4 140.8  95 3.92 3.150 22.90  1  0    4    2
Merc 280            19.2   6 167.6 123 3.92 3.440 18.30  1  0    4    4
Merc 280C           17.8   6 167.6 123 3.92 3.440 18.90  1  0    4    4
Merc 450SE          16.4   8 275.8 180 3.07 4.070 17.40  0  0    3    3
Merc 450SL          17.3   8 275.8 180 3.07 3.730 17.60  0  0    3    3
Merc 450SLC         15.2   8 275.8 180 3.07 3.780 18.00  0  0    3    3
Cadillac Fleetwood  10.4   8 472.0 205 2.93 5.250 17.98  0  0    3    4
Lincoln Continental 10.4   8 460.0 215 3.00 5.424 17.82  0  0    3    4
Chrysler Imperial   14.7   8 440.0 230 3.23 5.345 17.42  0  0    3    4
Fiat 128            32.4   4  78.7  66 4.08 2.200 19.47  1  1    4    1
Honda Civic         30.4   4  75.7  52 4.93 1.615 18.52  1  1    4    2
Toyota Corolla      33.9   4  71.1  65 4.22 1.835 19.90  1  1    4    1
Toyota Corona       21.5   4 120.1  97 3.70 2.465 20.01  1  0    3    1
Dodge Challenger    15.5   8 318.0 150 2.76 3.520 16.87  0  0    3    2
AMC Javelin         15.2   8 304.0 150 3.15 3.435 17.30  0  0    3    2
Camaro Z28          13.3   8 350.0 245 3.73 3.840 15.41  0  0    3    4
Pontiac Firebird    19.2   8 400.0 175 3.08 3.845 17.05  0  0    3    2
Fiat X1-9           27.3   4  79.0  66 4.08 1.935 18.90  1  1    4    1
Porsche 914-2       26.0   4 120.3  91 4.43 2.140 16.70  0  1    5    2
Lotus Europa        30.4   4  95.1 113 3.77 1.513 16.90  1  1    5    2
Ford Pantera L      15.8   8 351.0 264 4.22 3.170 14.50  0  1    5    4
Ferrari Dino        19.7   6 145.0 175 3.62 2.770 15.50  0  1    5    6
Maserati Bora       15.0   8 301.0 335 3.54 3.570 14.60  0  1    5    8
Volvo 142E          21.4   4 121.0 109 4.11 2.780 18.60  1  1    4    2
```
]

---
count: false

```r
datasets::mtcars %>%
* dist()
```
]

.panel2-dendro-auto[

```
                      Mazda RX4 Mazda RX4 Wag  Datsun 710 Hornet 4 Drive
Mazda RX4 Wag         0.6153251
Datsun 710           54.9086059    54.8915169
Hornet 4 Drive       98.1125212    98.0958939 150.9935191
Hornet Sportabout   210.3374396   210.3358546 265.0831615    121.0297564
Valiant              65.4717710    65.4392224 117.7547018     33.5508692
Duster 360          241.4076490   241.4088680 294.4790230    169.4299647
Merc 240D            50.1532711    50.1146059  49.6584796    121.2739722
Merc 230             25.4683117    25.3284509  33.1803843    118.2433145
Merc 280             15.3641921    15.2956865  66.9363534     91.4224033
Merc 280C            15.6724727    15.5837744  67.0261397     91.4612914
Merc 450SE          135.4307018   135.4254826 189.1954941     72.4964325
Merc 450SL          135.4014424   135.3960351 189.1631745     72.4313532
Merc 450SLC         135.4794674   135.4723157 189.2345426     72.5718466
Cadillac Fleetwood  326.3395903   326.3355070 381.0926242    234.4403876
Lincoln Continental 318.0469808   318.0429333 372.8012090    227.9726091
Chrysler Imperial   304.7203408   304.7169175 359.3014906    218.1548299
Fiat 128             93.2679950    93.2530993  40.9933763    184.9689734
Honda Civic         102.8307567   102.8238713  52.7704607    191.5518700
Toyota Corolla      100.6040368   100.5887588  47.6535017    192.6714187
Toyota Corona        42.3075233    42.2659224  12.9654743    138.5304725
Dodge Challenger    163.1150750   163.1134210 217.7795805     72.4403915
AMC Javelin         149.6047203   149.6014522 204.3188913     61.3601899
Camaro Z28          233.2228758   233.2248748 286.0049209    163.6632641
Pontiac Firebird    248.6780270   248.6762035 303.3583889    156.2240346
Fiat X1-9            92.5048389    92.4940020  39.8815148    184.4471198
Porsche 914-2        44.4033659    44.4073589  13.1357109    139.1579524
Lotus Europa         65.7328377    65.7362635  25.0948550    163.2367437
Ford Pantera L      245.4247064   245.4293785 297.2940489    180.1140339
Ferrari Dino         66.7661029    66.7764167  90.2415509    130.5523007
Maserati Bora       265.6454248   265.6491465 309.7718171    229.3419352
Volvo 142E           39.1894029    39.1626037  20.6939436    137.0363299
                    Hornet Sportabout     Valiant  Duster 360   Merc 240D
Mazda RX4 Wag
Datsun 710
Hornet 4 Drive
Hornet Sportabout
Valiant                   152.1241352
Duster 360                 70.1767262 194.6094525
Merc 240D                 241.5069657  89.5911056 281.2962502
Merc 230                  233.4924012  85.0079649 265.8823313  33.6873047
Merc 280                  199.3344960  60.2909811 227.8998521  64.7754228
Merc 280C                 199.3406564  60.2655656 227.8813169  64.8898713
Merc 450SE                 84.3888482  90.6970264 106.4084264 175.1620073
Merc 450SL                 84.3683999  90.6769728 106.4320572 175.1189767
Merc 450SLC                84.4332423  90.7092989 106.4010305 175.2118218
Cadillac Fleetwood        116.2804201 266.6280942 119.0239068 355.6627498
Lincoln Continental       108.0624299 259.6304391 104.5112999 348.9901277
Chrysler Imperial          97.2049146 248.7713290  81.4297699 338.1959373
Fiat 128                  302.0377212 152.1153263 333.9792070  68.6105903
Honda Civic               310.0324645 158.9615769 344.0518316  72.0014488
Toyota Corolla            309.5581776 159.8302995 341.0218232  76.2806458
Toyota Corona             252.3331988 105.2876428 282.0508820  44.0850975
Dodge Challenger           48.9838851 103.4310693 103.9023864 192.8617917
AMC Javelin                61.4274240  91.0444349 110.3084921 180.5479760
Camaro Z28                 70.9665308 187.8463771  10.0761203 273.8367985
Pontiac Firebird           40.0052475 188.5272116  80.8057339 277.4606884
Fiat X1-9                 301.5669483 151.4379425 333.4843231  67.9163981
Porsche 914-2             254.1452553 106.0585767 285.1986201  39.4469276
Lotus Europa              272.3582423 130.8248192 296.4572287  72.8971106
Ford Pantera L             89.5934049 203.0177926  21.2655990 287.5238795
Ferrari Dino              215.0673853 106.5694802 226.2036333 113.3023005
Maserati Bora             170.7094473 242.4393015 107.7224977 313.8633093
Volvo 142E                248.0063378 104.1863681 275.1353516  53.6823481
                       Merc 230    Merc 280   Merc 280C  Merc 450SE  Merc 450SL
Mazda RX4 Wag
Datsun 710
Hornet 4 Drive
Hornet Sportabout
Valiant
Duster 360
Merc 240D
Merc 230
Merc 280             39.2994160
Merc 280C            39.3868519   1.5231546
Merc 450SE          159.8179555 122.3642489 122.3461050
Merc 450SL          159.7760899 122.3443771 122.3355492   0.9826495
Merc 450SLC         159.8495837 122.3934970 122.3586862   1.3726252   2.1383405
Cadillac Fleetwood  349.2832611 315.3904859 315.3557081 197.8842803 197.9154476
Lincoln Continental 341.3154316 306.6760719 306.6406187 187.5997191 187.6330806
Chrysler Imperial   328.4335161 292.7146896 292.6989332 171.6600758 171.6743028
Fiat 128             69.3127910 106.5053149 106.6829794 228.3247948 228.2592340
Honda Civic          78.5387212 116.7280991 116.8711475 238.0141824 237.9588183
Toyota Corolla       76.7731674 113.6290721 113.8118009 235.5183809 235.4481971
Toyota Corona        21.0962017  54.3641713  54.4258314 176.6020527 176.5727477
Dodge Challenger    185.8331870 152.8929263 152.8722437  51.8008639  51.8242520
AMC Javelin         172.5312555 139.1457974 139.1181977  41.2080044  41.2411618
Camaro Z28          257.7469734 219.5520854 219.5276434  98.7203049  98.7566899
Pontiac Firebird    271.3871978 238.1726099 238.1806292 124.3368538 124.3204160
Fiat X1-9            68.5564864 105.7412910 105.8560373 227.7627676 227.7173075
Porsche 914-2        22.1180967  57.6458160  57.8473863 179.5034108 179.4550855
Lotus Europa         50.1094030  74.1443580  74.3824296 193.3074449 193.2407697
Ford Pantera L      269.9772035 231.4081306 231.4024263 112.8181834 112.8296774
Ferrari Dino         80.6550953  56.8365103  56.8987601 131.0272205 131.0077635
Maserati Bora       288.8755628 250.5874125 250.5774357 157.1633256 157.1768956
Volvo 142E           24.6913548  48.8053450  48.8884618 170.4500681 170.4225164
                    Merc 450SLC Cadillac Fleetwood Lincoln Continental
Mazda RX4 Wag
Datsun 710
Hornet 4 Drive
Hornet Sportabout
Valiant
Duster 360
Merc 240D
Merc 230
Merc 280
Merc 280C
Merc 450SE
Merc 450SL
Merc 450SLC
Cadillac Fleetwood  197.8526242
Lincoln Continental 187.5671081         15.6224446
Chrysler Imperial   171.6557637         40.8399636          25.3714237
Fiat 128            228.4051825        417.7687579         410.0206984
Honda Civic         238.0828999        425.3271621         417.9679574
Toyota Corolla      235.6024098        425.3446517         417.5429986
Toyota Corona       176.6305359        368.3195488         360.0267515
Dodge Challenger     51.8012606        163.6314881         156.2805020
AMC Javelin          41.1929050        176.8610896         169.0925457
Camaro Z28           98.7035830        128.4587210         114.0932078
Pontiac Firebird    124.3726128         78.5385347          72.6947903
Fiat X1-9           227.8176554        417.2490481         409.4998363
Porsche 914-2       179.5720446        370.0956775         362.0145494
Lotus Europa        193.3969216        388.5350012         379.4716659
Ford Pantera L      112.8332602        134.8119464         119.7236456
Ferrari Dino        131.0704490        328.5441628         317.7063117
Maserati Bora       157.1683970        214.9366858         199.3420611
Volvo 142E          170.4843735        364.1000930         355.4009443
                    Chrysler Imperial    Fiat 128 Honda Civic Toyota Corolla
Mazda RX4 Wag
Datsun 710
Hornet 4 Drive
Hornet Sportabout
Valiant
Duster 360
Merc 240D
Merc 230
Merc 280
Merc 280C
Merc 450SE
Merc 450SL
Merc 450SLC
Cadillac Fleetwood
Lincoln Continental
Chrysler Imperial
Fiat 128                  397.2276375
Honda Civic               405.8152201  14.5590942
Toyota Corolla            404.6335386   7.8324789  14.3480626
Toyota Corona             346.5724649  52.8798281  63.8985563     59.8451285
Dodge Challenger          145.9194779 254.2367888 261.8498815    261.8345312
AMC Javelin               157.8097554 241.1203621 248.9636504    248.6917065
Camaro Z28                 91.2880886 325.6636235 335.8883188    332.6589699
Pontiac Firebird           68.2030747 339.5857659 347.0655360    347.1667643
Fiat X1-9                 396.7597522   5.1473415  14.7807070     10.3922856
Porsche 914-2             348.8466861  49.0644372  59.4588768     56.3243031
Lotus Europa              364.5994326  49.9112509  64.0495153     53.8846563
Ford Pantera L             95.3805385 337.1639236 347.8337714    343.9920962
Ferrari Dino              300.1640703 128.3950054 141.7044478    133.4707617
Maserati Bora             174.2936864 349.5338830 362.1620777    355.2601619
Volvo 142E                341.2896659  61.3301247  73.3766041     67.7189421
                    Toyota Corona Dodge Challenger AMC Javelin  Camaro Z28
Mazda RX4 Wag
Datsun 710
Hornet 4 Drive
Hornet Sportabout
Valiant
Duster 360
Merc 240D
Merc 230
Merc 280
Merc 280C
Merc 450SE
Merc 450SL
Merc 450SLC
Cadillac Fleetwood
Lincoln Continental
Chrysler Imperial
Fiat 128
Honda Civic
Toyota Corolla
Toyota Corona
Dodge Challenger      205.0347927
AMC Javelin           191.5580526       14.0154995
Camaro Z28            273.6316895      100.3046106 105.6062618
Pontiac Firebird      290.6240706       85.8075196  99.2836114  86.2665759
Fiat X1-9              51.8411748      253.6624046 240.5266823 325.1490914
Porsche 914-2           8.6535903      206.6452569 193.3080584 276.8924414
Lotus Europa           31.2536926      226.5004836 212.7568765 287.6179004
Ford Pantera L        285.1287911      118.7516779 123.3832044  19.3589023
Ferrari Dino           82.2355734      174.9280395 161.1060307 216.7489910
Maserati Bora         299.1865216      185.9059273 185.1553411 102.5946154
Volvo 142E             12.2505275      201.3682522 187.6978440 266.5277736
                    Pontiac Firebird   Fiat X1-9 Porsche 914-2 Lotus Europa
Mazda RX4 Wag
Datsun 710
Hornet 4 Drive
Hornet Sportabout
Valiant
Duster 360
Merc 240D
Merc 230
Merc 280
Merc 280C
Merc 450SE
Merc 450SL
Merc 450SLC
Cadillac Fleetwood
Lincoln Continental
Chrysler Imperial
Fiat 128
Honda Civic
Toyota Corolla
Toyota Corona
Dodge Challenger
AMC Javelin
Camaro Z28
Pontiac Firebird
Fiat X1-9                339.1396182
Porsche 914-2            292.1646488  48.3775209
Lotus Europa             311.3862342  49.8406880    33.7678653
Ford Pantera L           101.7389686 336.7018783   288.5852993  297.5376920
Ferrari Dino             255.0570519 127.8210813    87.9105966   80.4553451
Maserati Bora            188.3240020 349.1199576   303.9222549  303.2796468
Volvo 142E               286.7497823  60.4120429    18.7555858   27.8104457
                    Ford Pantera L Ferrari Dino Maserati Bora
Mazda RX4 Wag
Datsun 710
Hornet 4 Drive
Hornet Sportabout
Valiant
Duster 360
Merc 240D
Merc 230
Merc 280
Merc 280C
Merc 450SE
Merc 450SL
Merc 450SLC
Cadillac Fleetwood
Lincoln Continental
Chrysler Imperial
Fiat 128
Honda Civic
Toyota Corolla
Toyota Corona
Dodge Challenger
AMC Javelin
Camaro Z28
Pontiac Firebird
Fiat X1-9
Porsche 914-2
Lotus Europa
Ford Pantera L
Ferrari Dino           224.4587490
Maserati Bora           86.9383253  223.5342175
Volvo 142E             277.4803312   70.4751034   289.1157363
```
]

---
count: false

```r
datasets::mtcars %>%
  dist() %>%
* hclust()
```
]

.panel2-dendro-auto[

```

Call:
hclust(d = .)

Cluster method   : complete
Distance         : euclidean
Number of objects: 32
```
]

---
count: false

```r
datasets::mtcars %>%
  dist() %>%
  hclust() %>%
* ggraph()
```
]

.panel2-dendro-auto[
<img src="networks_presentation_files/figure-html/dendro_auto_04_output-1.png" width="432" />
]

---
count: false

```r
datasets::mtcars %>%
  dist() %>%
  hclust() %>%
  ggraph() +
* geom_edge_elbow()
```
]

.panel2-dendro-auto[
<img src="networks_presentation_files/figure-html/dendro_auto_05_output-1.png" width="432" />
]

---
count: false

```r
datasets::mtcars %>%
  dist() %>%
  hclust() %>%
  ggraph() +
  geom_edge_elbow() +
* geom_node_point(aes(filter = leaf))
```
]

.panel2-dendro-auto[
<img src="networks_presentation_files/figure-html/dendro_auto_06_output-1.png" width="432" />
]

---
count: false

```r
datasets::mtcars %>%
  dist() %>%
  hclust() %>%
  ggraph() +
  geom_edge_elbow() +
  geom_node_point(aes(filter = leaf)) +
* coord_polar(theta = "x")
```
]

.panel2-dendro-auto[
<img src="networks_presentation_files/figure-html/dendro_auto_07_output-1.png" width="432" />
]

---
count: false

```r
datasets::mtcars %>%
  dist() %>%
  hclust() %>%
  ggraph() +
  geom_edge_elbow() +
  geom_node_point(aes(filter = leaf)) +
  coord_polar(theta = "x") +
* scale_y_reverse()
```
]

.panel2-dendro-auto[
<img src="networks_presentation_files/figure-html/dendro_auto_08_output-1.png" width="432" />
]

---
count: false

```r
datasets::mtcars %>%
  dist() %>%
  hclust() %>%
  ggraph() +
  geom_edge_elbow() +
  geom_node_point(aes(filter = leaf)) +
  coord_polar(theta = "x") +
  scale_y_reverse() +
* geom_node_text(aes(x = x*1.05, y = y*1.05, filter = leaf,
*                angle = node_angle(x, y), label = label),
*            size = 3, hjust = 'outward')
```
]

.panel2-dendro-auto[
<img src="networks_presentation_files/figure-html/dendro_auto_09_output-1.png" width="432" />
]

---

## Network analysis for *text analysis*

- treaty legal text commonality

---

### Who wrote the disputed federalist papers?  Each node is a paper, decorated by authorship.

---

# Reveiw

#### Today we discussed r-l-t--n-l d-t- -nd -ts -n-lys-s.  We was that there has been increased usage in the term N-tw-rk V-s--l-z-t--n in G--gl-'s ngr-m v--w-r &ndash; usage has been skyrocketing. Then we talked about network data structure, using the classic Z-ch-ry's K-r-t- Cl-b data set as an example.   Raw network data is composed of about -dg- l-sts, and n-d-s l-sts.

#### We also explored a number of network visualization l-y--ts.  A couple of f-rc--d-r-ct-d layouts were the Fructerman-Reingold and Kamada Kawai &ndash; different algorithms based on physical models that balancing -ttr-ct-v- and r-p-ls-v- f-rc-s -- you might think of a the edges as a set of springs. These force-derected layouts contrast with geometric layouts like the c-rcl- or sph-r- or the r-nd-m layouts.

---

####  We then had a look at Krebs 2002, "Mapping Networks of Terrorist Cells".  His choice of layout seemed to be a f-rc--d-r-ct-d one.  He calculated centrality measures calculated and decoration on the 9-11 terrorist network. The simplest measure was *degree* centrality -- which calculates "incidence upon" -- just the number of connections to the node.  The other two were cl-s-n-ss centrality and b-tw--nn-ss.

#### We actually calculated characteristics of our node too measures too &ndash; c-ntr-l-ty measures for our network example.

#### Sometimes, network visualizations are d-c-r-t-d with variation in --sth-t-cs (colors, shapes, size) that represent these characteristics (line width or line type is typical for the edge list). We had size of nodes represent centrality measures in our network visualization.

---

####  Finally, we talked about another paradigm in analysing relational data -- the dy-d-c paradigm, which has been the framework for much work coming out of the Correlates of War (COW) project.  Here we learned about the concept of dy-d-c data and analysis, and that paradigm has been challanged, especially by expert of network analysis, but that dyadic structure is suited to r-gr-ss--n -n-lys-s.

#### Exploring the COW All--nc- data set, we saw the evolution in the set of alliances in the online app, and the star and -g- graph.  Dr. Reynolds also talked about the b-p-rt-t- networks &ndash; which capture association.  It is helpful to visualize the b-p-rt-t- --- the alliances organizations as nodes to avoid the so-called h--rb-ll graph.

#### Network analysis is promising as a tool for study of a wide variety of *issues areas* and is complementary to other *analysis specialization* including text and spatial analysis.

---

# Thank you!

## Questions?

---
