swim

count: false

.panel1-the_chunk-auto[

``` r
*library(ggswim)
```
]

.panel2-the_chunk-auto[

]

---
count: false

.panel1-the_chunk-auto[

``` r
library(ggswim)
*library(ggplot2)
```
]

.panel2-the_chunk-auto[

]

---
count: false

.panel1-the_chunk-auto[

``` r
library(ggswim)
library(ggplot2)
*patient_data %>% head(3)
```
]

.panel2-the_chunk-auto[

```
# A tibble: 3 × 4
  pt_id disease_assessment       start_time end_time
  <chr> <chr>                         <dbl>    <dbl>
1 01    CR/CRi + B Cell Recovery       -2.8      0
2 01    RD                              0        0.9
3 01    CR/CRi + B Cell Aplasia         0.9      1.8
```
]

---
count: false

.panel1-the_chunk-auto[

``` r
library(ggswim)
library(ggplot2)
patient_data %>% head(3)

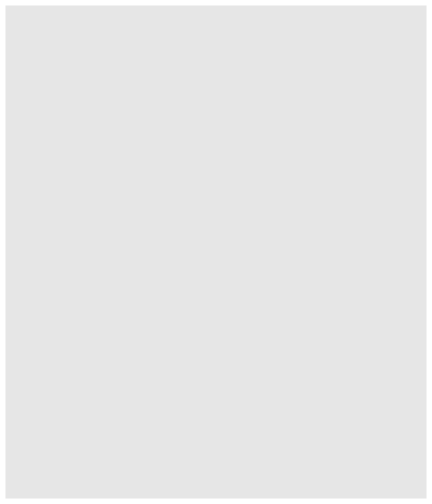

*ggplot(data = patient_data)
```
]

.panel2-the_chunk-auto[

```
# A tibble: 3 × 4
  pt_id disease_assessment       start_time end_time
  <chr> <chr>                         <dbl>    <dbl>
1 01    CR/CRi + B Cell Recovery       -2.8      0
2 01    RD                              0        0.9
3 01    CR/CRi + B Cell Aplasia         0.9      1.8
```

![](swim_chunk_flipbook_files/figure-html/the_chunk_auto_04_output-1.png)
]

---
count: false

.panel1-the_chunk-auto[

``` r
library(ggswim)
library(ggplot2)
patient_data %>% head(3)

ggplot(data = patient_data) +
* aes(x = start_time,
*     y = pt_id)
```
]

.panel2-the_chunk-auto[

```
# A tibble: 3 × 4
  pt_id disease_assessment       start_time end_time
  <chr> <chr>                         <dbl>    <dbl>
1 01    CR/CRi + B Cell Recovery       -2.8      0
2 01    RD                              0        0.9
3 01    CR/CRi + B Cell Aplasia         0.9      1.8
```

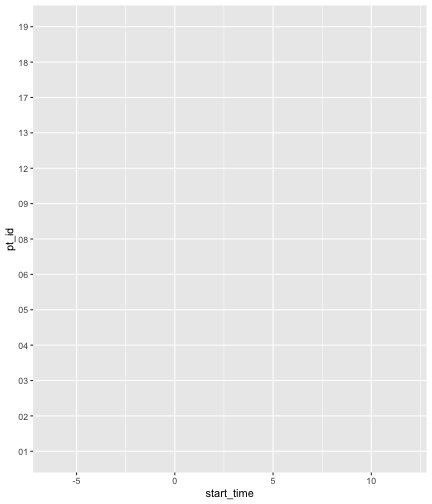

![](swim_chunk_flipbook_files/figure-html/the_chunk_auto_05_output-1.png)
]

---
count: false

.panel1-the_chunk-auto[

``` r
library(ggswim)
library(ggplot2)
patient_data %>% head(3)

ggplot(data = patient_data) +
  aes(x = start_time,
      y = pt_id) +
* labs(title = "My Swimmer Plot")
```
]

.panel2-the_chunk-auto[

```
# A tibble: 3 × 4
  pt_id disease_assessment       start_time end_time
  <chr> <chr>                         <dbl>    <dbl>
1 01    CR/CRi + B Cell Recovery       -2.8      0
2 01    RD                              0        0.9
3 01    CR/CRi + B Cell Aplasia         0.9      1.8
```

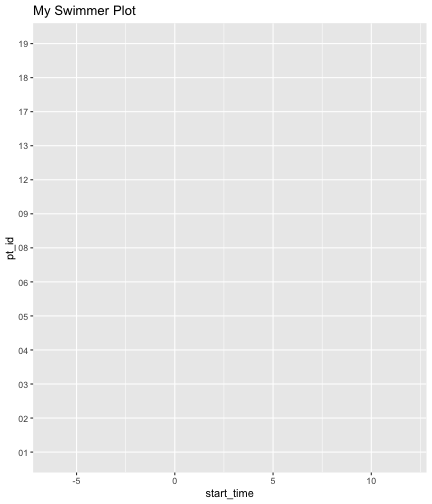

![](swim_chunk_flipbook_files/figure-html/the_chunk_auto_06_output-1.png)
]

---
count: false

.panel1-the_chunk-auto[

``` r
library(ggswim)
library(ggplot2)
patient_data %>% head(3)

ggplot(data = patient_data) +
  aes(x = start_time,
      y = pt_id) +
  labs(title = "My Swimmer Plot") +
* labs(x = "Time Since Infusion (Months)")
```
]

.panel2-the_chunk-auto[

```
# A tibble: 3 × 4
  pt_id disease_assessment       start_time end_time
  <chr> <chr>                         <dbl>    <dbl>
1 01    CR/CRi + B Cell Recovery       -2.8      0
2 01    RD                              0        0.9
3 01    CR/CRi + B Cell Aplasia         0.9      1.8
```

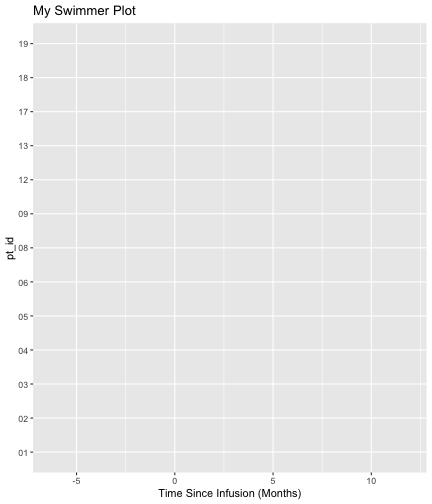

![](swim_chunk_flipbook_files/figure-html/the_chunk_auto_07_output-1.png)
]

---
count: false

.panel1-the_chunk-auto[

``` r
library(ggswim)
library(ggplot2)
patient_data %>% head(3)

ggplot(data = patient_data) +
  aes(x = start_time,
      y = pt_id) +
  labs(title = "My Swimmer Plot") +
  labs(x = "Time Since Infusion (Months)") +

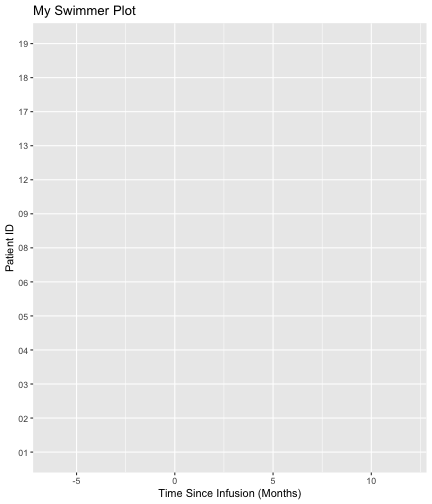

* labs(y = "Patient ID")
```
]

.panel2-the_chunk-auto[

```
# A tibble: 3 × 4
  pt_id disease_assessment       start_time end_time
  <chr> <chr>                         <dbl>    <dbl>
1 01    CR/CRi + B Cell Recovery       -2.8      0
2 01    RD                              0        0.9
3 01    CR/CRi + B Cell Aplasia         0.9      1.8
```

![](swim_chunk_flipbook_files/figure-html/the_chunk_auto_08_output-1.png)
]

---
count: false

.panel1-the_chunk-auto[

``` r
library(ggswim)
library(ggplot2)
patient_data %>% head(3)

ggplot(data = patient_data) +
  aes(x = start_time,
      y = pt_id) +
  labs(title = "My Swimmer Plot") +
  labs(x = "Time Since Infusion (Months)") +
  labs(y = "Patient ID") +

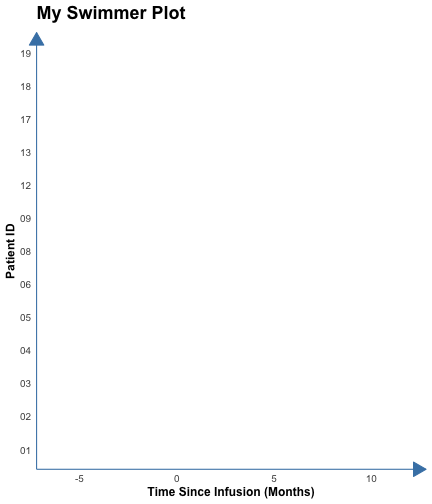

* theme_ggswim()
```
]

.panel2-the_chunk-auto[

```
# A tibble: 3 × 4
  pt_id disease_assessment       start_time end_time
  <chr> <chr>                         <dbl>    <dbl>
1 01    CR/CRi + B Cell Recovery       -2.8      0
2 01    RD                              0        0.9
3 01    CR/CRi + B Cell Aplasia         0.9      1.8
```

![](swim_chunk_flipbook_files/figure-html/the_chunk_auto_09_output-1.png)
]

---
count: false

.panel1-the_chunk-auto[

``` r
library(ggswim)
library(ggplot2)
patient_data %>% head(3)

ggplot(data = patient_data) +
  aes(x = start_time,
      y = pt_id) +
  labs(title = "My Swimmer Plot") +
  labs(x = "Time Since Infusion (Months)") +
  labs(y = "Patient ID") +
  theme_ggswim() +

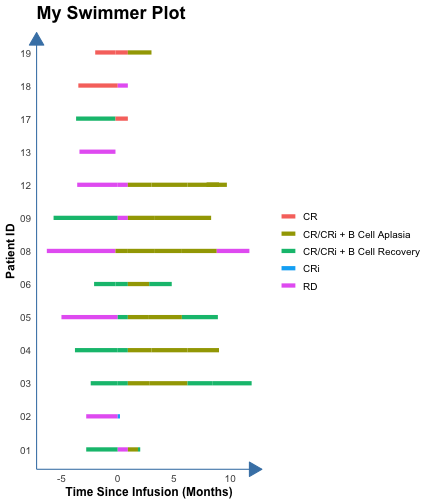

* geom_swim_lane(aes(
*   x = start_time,
*   y = pt_id,
*   xend = end_time,
*   color = disease_assessment))
```
]

.panel2-the_chunk-auto[

```
# A tibble: 3 × 4
  pt_id disease_assessment       start_time end_time
  <chr> <chr>                         <dbl>    <dbl>
1 01    CR/CRi + B Cell Recovery       -2.8      0
2 01    RD                              0        0.9
3 01    CR/CRi + B Cell Aplasia         0.9      1.8
```

![](swim_chunk_flipbook_files/figure-html/the_chunk_auto_10_output-1.png)
]

---
count: false

.panel1-the_chunk-auto[

``` r
library(ggswim)
library(ggplot2)
patient_data %>% head(3)

ggplot(data = patient_data) +
  aes(x = start_time,
      y = pt_id) +
  labs(title = "My Swimmer Plot") +
  labs(x = "Time Since Infusion (Months)") +
  labs(y = "Patient ID") +
  theme_ggswim() +
  geom_swim_lane(aes(
    x = start_time,
    y = pt_id,
    xend = end_time,
    color = disease_assessment)) +
* scale_color_brewer(
*   name = "Overall Disease Assessment",
*   palette = "Set1"
* )
```
]

.panel2-the_chunk-auto[

```
# A tibble: 3 × 4
  pt_id disease_assessment       start_time end_time
  <chr> <chr>                         <dbl>    <dbl>
1 01    CR/CRi + B Cell Recovery       -2.8      0
2 01    RD                              0        0.9
3 01    CR/CRi + B Cell Aplasia         0.9      1.8
```

![](swim_chunk_flipbook_files/figure-html/the_chunk_auto_11_output-1.png)
]

---
count: false

.panel1-the_chunk-auto[

``` r
library(ggswim)
library(ggplot2)
patient_data %>% head(3)

ggplot(data = patient_data) +
  aes(x = start_time,
      y = pt_id) +
  labs(title = "My Swimmer Plot") +
  labs(x = "Time Since Infusion (Months)") +
  labs(y = "Patient ID") +
  theme_ggswim() +
  geom_swim_lane(aes(
    x = start_time,
    y = pt_id,
    xend = end_time,
    color = disease_assessment)) +
  scale_color_brewer(
    name = "Overall Disease Assessment",
    palette = "Set1"
  ) ->
*p1
```
]

.panel2-the_chunk-auto[

```
# A tibble: 3 × 4
  pt_id disease_assessment       start_time end_time
  <chr> <chr>                         <dbl>    <dbl>
1 01    CR/CRi + B Cell Recovery       -2.8      0
2 01    RD                              0        0.9
3 01    CR/CRi + B Cell Aplasia         0.9      1.8
```
]

<style>
.panel1-the_chunk-auto {
  color: black;
  width: 38.6060606060606%;
  hight: 32%;
  float: left;
  padding-left: 1%;
  font-size: 80%
}
.panel2-the_chunk-auto {
  color: black;
  width: 59.3939393939394%;
  hight: 32%;
  float: left;
  padding-left: 1%;
  font-size: 80%
}
.panel3-the_chunk-auto {
  color: black;
  width: NA%;
  hight: 33%;
  float: left;
  padding-left: 1%;
  font-size: 80%
}
</style>

---

count: false

.panel1-the_chunk2-auto[

``` r
*patient_data
```
]

.panel2-the_chunk2-auto[

```
# A tibble: 53 × 4
   pt_id disease_assessment       start_time end_time
   <chr> <chr>                         <dbl>    <dbl>
 1 01    CR/CRi + B Cell Recovery       -2.8      0
 2 01    RD                              0        0.9
 3 01    CR/CRi + B Cell Aplasia         0.9      1.8
 4 01    CR/CRi + B Cell Recovery        1.8      2
 5 02    RD                             -2.8      0
 6 02    CRi                             0        0.2
 7 03    CR/CRi + B Cell Recovery       -2.4      0
 8 03    CR/CRi + B Cell Recovery        0        0.9
 9 03    CR/CRi + B Cell Aplasia         0.9      2.8
10 03    CR/CRi + B Cell Aplasia         2.8      6.2
# ℹ 43 more rows
```
]

---
count: false

.panel1-the_chunk2-auto[

``` r
patient_data |>
* dplyr::left_join(
*   end_study_events |>
*     dplyr::select(pt_id, end_study_name),
*   by = "pt_id"
* )
```
]

.panel2-the_chunk2-auto[

```
# A tibble: 53 × 5
   pt_id disease_assessment       start_time end_time end_study_name
   <chr> <chr>                         <dbl>    <dbl> <chr>
 1 01    CR/CRi + B Cell Recovery       -2.8      0   Other End Study Reason
 2 01    RD                              0        0.9 Other End Study Reason
 3 01    CR/CRi + B Cell Aplasia         0.9      1.8 Other End Study Reason
 4 01    CR/CRi + B Cell Recovery        1.8      2   Other End Study Reason
 5 02    RD                             -2.8      0   Deceased
 6 02    CRi                             0        0.2 Deceased
 7 03    CR/CRi + B Cell Recovery       -2.4      0   Completed Study Follow-Up
 8 03    CR/CRi + B Cell Recovery        0        0.9 Completed Study Follow-Up
 9 03    CR/CRi + B Cell Aplasia         0.9      2.8 Completed Study Follow-Up
10 03    CR/CRi + B Cell Aplasia         2.8      6.2 Completed Study Follow-Up
# ℹ 43 more rows
```
]

---
count: false

.panel1-the_chunk2-auto[

``` r
patient_data |>
  dplyr::left_join(
    end_study_events |>
      dplyr::select(pt_id, end_study_name),
    by = "pt_id"
  ) |>
* dplyr::select(pt_id, end_time, end_study_name)
```
]

.panel2-the_chunk2-auto[

```
# A tibble: 53 × 3
   pt_id end_time end_study_name
   <chr>    <dbl> <chr>
 1 01         0   Other End Study Reason
 2 01         0.9 Other End Study Reason
 3 01         1.8 Other End Study Reason
 4 01         2   Other End Study Reason
 5 02         0   Deceased
 6 02         0.2 Deceased
 7 03         0   Completed Study Follow-Up
 8 03         0.9 Completed Study Follow-Up
 9 03         2.8 Completed Study Follow-Up
10 03         6.2 Completed Study Follow-Up
# ℹ 43 more rows
```
]

---
count: false

.panel1-the_chunk2-auto[

``` r
patient_data |>
  dplyr::left_join(
    end_study_events |>
      dplyr::select(pt_id, end_study_name),
    by = "pt_id"
  ) |>
  dplyr::select(pt_id, end_time, end_study_name) |>
* dplyr::filter(.by = pt_id,
*               end_time == max(end_time))
```
]

.panel2-the_chunk2-auto[

```
# A tibble: 14 × 3
   pt_id end_time end_study_name
   <chr>    <dbl> <chr>
 1 01         2   Other End Study Reason
 2 02         0.2 Deceased
 3 03        11.9 Completed Study Follow-Up
 4 03        11.9 Completed Study Follow-Up
 5 04         9   <NA>
 6 05         8.9 <NA>
 7 06         4.8 Other End Study Reason
 8 08        11.7 Other End Study Reason
 9 09         8.3 <NA>
10 12         9.7 Other End Study Reason
11 13        -0.2 <NA>
12 17         0.9 <NA>
13 18         0.9 <NA>
14 19         3   <NA>
```
]

---
count: false

.panel1-the_chunk2-auto[

``` r
patient_data |>
  dplyr::left_join(
    end_study_events |>
      dplyr::select(pt_id, end_study_name),
    by = "pt_id"
  ) |>
  dplyr::select(pt_id, end_time, end_study_name) |>
  dplyr::filter(.by = pt_id,
                end_time == max(end_time)) |>
* unique()
```
]

.panel2-the_chunk2-auto[

```
# A tibble: 13 × 3
   pt_id end_time end_study_name
   <chr>    <dbl> <chr>
 1 01         2   Other End Study Reason
 2 02         0.2 Deceased
 3 03        11.9 Completed Study Follow-Up
 4 04         9   <NA>
 5 05         8.9 <NA>
 6 06         4.8 Other End Study Reason
 7 08        11.7 Other End Study Reason
 8 09         8.3 <NA>
 9 12         9.7 Other End Study Reason
10 13        -0.2 <NA>
11 17         0.9 <NA>
12 18         0.9 <NA>
13 19         3   <NA>
```
]

---
count: false

.panel1-the_chunk2-auto[

``` r
patient_data |>
  dplyr::left_join(
    end_study_events |>
      dplyr::select(pt_id, end_study_name),
    by = "pt_id"
  ) |>
  dplyr::select(pt_id, end_time, end_study_name) |>
  dplyr::filter(.by = pt_id,
                end_time == max(end_time)) |>
  unique() ->
*arrow_data
```
]

.panel2-the_chunk2-auto[

]

---
count: false

.panel1-the_chunk2-auto[

``` r
patient_data |>
  dplyr::left_join(
    end_study_events |>
      dplyr::select(pt_id, end_study_name),
    by = "pt_id"
  ) |>
  dplyr::select(pt_id, end_time, end_study_name) |>
  dplyr::filter(.by = pt_id,
                end_time == max(end_time)) |>
  unique() ->
arrow_data

*arrow_data %>% head(3)
```
]

.panel2-the_chunk2-auto[

```
# A tibble: 3 × 3
  pt_id end_time end_study_name
  <chr>    <dbl> <chr>
1 01         2   Other End Study Reason
2 02         0.2 Deceased
3 03        11.9 Completed Study Follow-Up
```
]

---
count: false

.panel1-the_chunk2-auto[

``` r
patient_data |>
  dplyr::left_join(
    end_study_events |>
      dplyr::select(pt_id, end_study_name),
    by = "pt_id"
  ) |>
  dplyr::select(pt_id, end_time, end_study_name) |>
  dplyr::filter(.by = pt_id,
                end_time == max(end_time)) |>
  unique() ->
arrow_data

arrow_data %>% head(3)

*p1
```
]

.panel2-the_chunk2-auto[

```
# A tibble: 3 × 3
  pt_id end_time end_study_name
  <chr>    <dbl> <chr>
1 01         2   Other End Study Reason
2 02         0.2 Deceased
3 03        11.9 Completed Study Follow-Up
```

![](swim_chunk_flipbook_files/figure-html/the_chunk2_auto_08_output-1.png)
]

---
count: false

.panel1-the_chunk2-auto[

``` r
patient_data |>
  dplyr::left_join(
    end_study_events |>
      dplyr::select(pt_id, end_study_name),
    by = "pt_id"
  ) |>
  dplyr::select(pt_id, end_time, end_study_name) |>
  dplyr::filter(.by = pt_id,
                end_time == max(end_time)) |>
  unique() ->
arrow_data

arrow_data %>% head(3)

p1 +

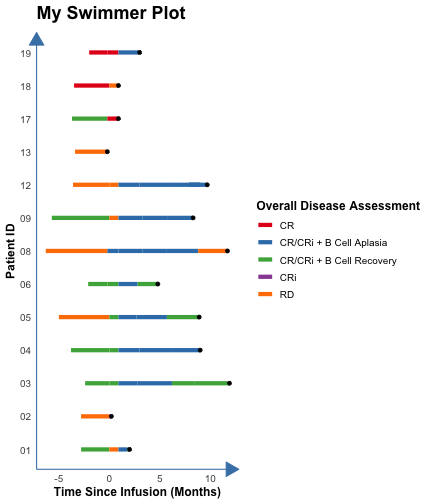

* geom_point(data = arrow_data,
*            aes(x = end_time,
*                y = pt_id))
```
]

.panel2-the_chunk2-auto[

```
# A tibble: 3 × 3
  pt_id end_time end_study_name
  <chr>    <dbl> <chr>
1 01         2   Other End Study Reason
2 02         0.2 Deceased
3 03        11.9 Completed Study Follow-Up
```

![](swim_chunk_flipbook_files/figure-html/the_chunk2_auto_09_output-1.png)
]

---
count: false

.panel1-the_chunk2-auto[

``` r
patient_data |>
  dplyr::left_join(
    end_study_events |>
      dplyr::select(pt_id, end_study_name),
    by = "pt_id"
  ) |>
  dplyr::select(pt_id, end_time, end_study_name) |>
  dplyr::filter(.by = pt_id,
                end_time == max(end_time)) |>
  unique() ->
arrow_data

arrow_data %>% head(3)

p1 +
  geom_point(data = arrow_data,
             aes(x = end_time,
                 y = pt_id)) +
* geom_swim_arrow(
*    data = arrow_data,
*    mapping = aes(x = NULL,
*                  y = pt_id,
*                  xend = end_time),
*    size = .3)
```
]

.panel2-the_chunk2-auto[

```
# A tibble: 3 × 3
  pt_id end_time end_study_name
  <chr>    <dbl> <chr>
1 01         2   Other End Study Reason
2 02         0.2 Deceased
3 03        11.9 Completed Study Follow-Up
```

![](swim_chunk_flipbook_files/figure-html/the_chunk2_auto_10_output-1.png)
]

---
count: false

.panel1-the_chunk2-auto[

``` r
patient_data |>
  dplyr::left_join(
    end_study_events |>
      dplyr::select(pt_id, end_study_name),
    by = "pt_id"
  ) |>
  dplyr::select(pt_id, end_time, end_study_name) |>
  dplyr::filter(.by = pt_id,
                end_time == max(end_time)) |>
  unique() ->
arrow_data

arrow_data %>% head(3)

p1 +
  geom_point(data = arrow_data,
             aes(x = end_time,
                 y = pt_id)) +
  geom_swim_arrow(
     data = arrow_data,
     mapping = aes(x = NULL,
                   y = pt_id,
                   xend = end_time),
     size = .3) ->
*p2
```
]

.panel2-the_chunk2-auto[

```
# A tibble: 3 × 3
  pt_id end_time end_study_name
  <chr>    <dbl> <chr>
1 01         2   Other End Study Reason
2 02         0.2 Deceased
3 03        11.9 Completed Study Follow-Up
```
]

<style>
.panel1-the_chunk2-auto {
  color: black;
  width: 38.6060606060606%;
  hight: 32%;
  float: left;
  padding-left: 1%;
  font-size: 80%
}
.panel2-the_chunk2-auto {
  color: black;
  width: 59.3939393939394%;
  hight: 32%;
  float: left;
  padding-left: 1%;
  font-size: 80%
}
.panel3-the_chunk2-auto {
  color: black;
  width: NA%;
  hight: 33%;
  float: left;
  padding-left: 1%;
  font-size: 80%
}
</style>

---

count: false

.panel1-the_chunk3-auto[

``` r
*infusion_events %>% head(2)
```
]

.panel2-the_chunk3-auto[

```
# A tibble: 2 × 3
  pt_id time_from_initial_infusion infusion_type
  <chr>                      <dbl> <chr>
1 01                             0 Initial Infusion
2 02                             0 Initial Infusion
```
]

---
count: false

.panel1-the_chunk3-auto[

``` r
infusion_events %>% head(2)

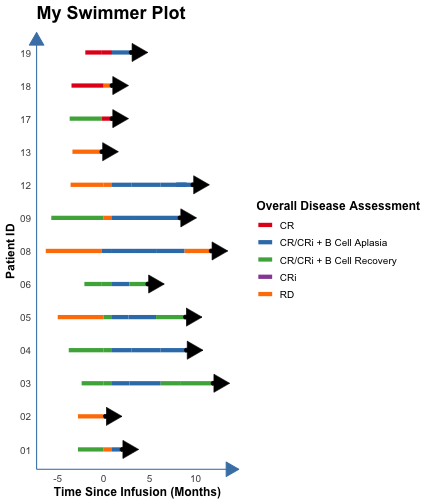

*p2
```
]

.panel2-the_chunk3-auto[

```
# A tibble: 2 × 3
  pt_id time_from_initial_infusion infusion_type
  <chr>                      <dbl> <chr>
1 01                             0 Initial Infusion
2 02                             0 Initial Infusion
```

![](swim_chunk_flipbook_files/figure-html/the_chunk3_auto_02_output-1.png)
]

---
count: false

.panel1-the_chunk3-auto[

``` r
infusion_events %>% head(2)

p2 +
* new_scale_color()
```
]

.panel2-the_chunk3-auto[

```
# A tibble: 2 × 3
  pt_id time_from_initial_infusion infusion_type
  <chr>                      <dbl> <chr>
1 01                             0 Initial Infusion
2 02                             0 Initial Infusion
```

![](swim_chunk_flipbook_files/figure-html/the_chunk3_auto_03_output-1.png)
]

---
count: false

.panel1-the_chunk3-auto[

``` r
infusion_events %>% head(2)

p2 +
  new_scale_color() +

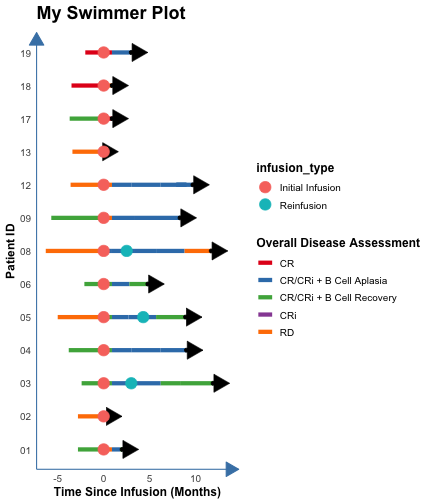

* geom_point(data = infusion_events,
*            aes(x = time_from_initial_infusion,
*                y = pt_id,
*                color = infusion_type),
*            size = 5)
```
]

.panel2-the_chunk3-auto[

```
# A tibble: 2 × 3
  pt_id time_from_initial_infusion infusion_type
  <chr>                      <dbl> <chr>
1 01                             0 Initial Infusion
2 02                             0 Initial Infusion
```

![](swim_chunk_flipbook_files/figure-html/the_chunk3_auto_04_output-1.png)
]

---
count: false

.panel1-the_chunk3-auto[

``` r
infusion_events %>% head(2)

p2 +
  new_scale_color() +
  geom_point(data = infusion_events,
             aes(x = time_from_initial_infusion,
                 y = pt_id,
                 color = infusion_type),
             size = 5) +

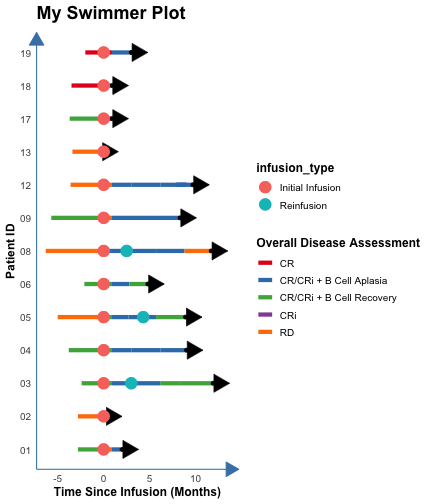

* geom_swim_point(
*   data = infusion_events,
*   aes(x = time_from_initial_infusion,
*       y = pt_id,
*       color = infusion_type),
*   size = 5
* )
```
]

.panel2-the_chunk3-auto[

```
# A tibble: 2 × 3
  pt_id time_from_initial_infusion infusion_type
  <chr>                      <dbl> <chr>
1 01                             0 Initial Infusion
2 02                             0 Initial Infusion
```

![](swim_chunk_flipbook_files/figure-html/the_chunk3_auto_05_output-1.png)
]

---
count: false

.panel1-the_chunk3-auto[

``` r
infusion_events %>% head(2)

p2 +
  new_scale_color() +
  geom_point(data = infusion_events,
             aes(x = time_from_initial_infusion,
                 y = pt_id,
                 color = infusion_type),
             size = 5) +
  geom_swim_point(
    data = infusion_events,
    aes(x = time_from_initial_infusion,
        y = pt_id,
        color = infusion_type),
    size = 5
  ) ->
*p3
```
]

.panel2-the_chunk3-auto[

```
# A tibble: 2 × 3
  pt_id time_from_initial_infusion infusion_type
  <chr>                      <dbl> <chr>
1 01                             0 Initial Infusion
2 02                             0 Initial Infusion
```
]

<style>
.panel1-the_chunk3-auto {
  color: black;
  width: 38.6060606060606%;
  hight: 32%;
  float: left;
  padding-left: 1%;
  font-size: 80%
}
.panel2-the_chunk3-auto {
  color: black;
  width: 59.3939393939394%;
  hight: 32%;
  float: left;
  padding-left: 1%;
  font-size: 80%
}
.panel3-the_chunk3-auto {
  color: black;
  width: NA%;
  hight: 33%;
  float: left;
  padding-left: 1%;
  font-size: 80%
}
</style>

---

count: false

.panel1-the_chunk4-auto[

``` r
*end_study_events %>% head(2)
```
]

.panel2-the_chunk4-auto[

```
# A tibble: 2 × 4
  pt_id time_from_initial_infusion end_study_label end_study_name
  <chr>                      <dbl> <chr>           <chr>
1 01                           2   ⚠️               Other End Study Reason
2 02                           0.2 ❌              Deceased
```
]

---
count: false

.panel1-the_chunk4-auto[

``` r
end_study_events %>% head(2)

*p3
```
]

.panel2-the_chunk4-auto[

```
# A tibble: 2 × 4
  pt_id time_from_initial_infusion end_study_label end_study_name
  <chr>                      <dbl> <chr>           <chr>
1 01                           2   ⚠️               Other End Study Reason
2 02                           0.2 ❌              Deceased
```

![](swim_chunk_flipbook_files/figure-html/the_chunk4_auto_02_output-1.png)
]

---
count: false

.panel1-the_chunk4-auto[

``` r
end_study_events %>% head(2)

p3 +

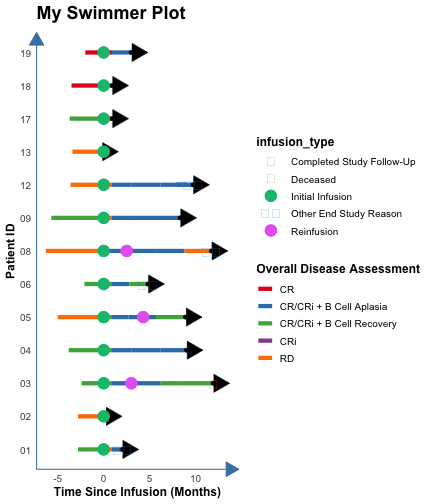

* geom_swim_label(
*   data = end_study_events,
*   aes(x = time_from_initial_infusion,
*       y = pt_id,
*       label_vals = end_study_label,
*       label_names = end_study_name),
*   label.size = NA, fill = NA, size = 5
* )
```
]

.panel2-the_chunk4-auto[

```
# A tibble: 2 × 4
  pt_id time_from_initial_infusion end_study_label end_study_name
  <chr>                      <dbl> <chr>           <chr>
1 01                           2   ⚠️               Other End Study Reason
2 02                           0.2 ❌              Deceased
```

![](swim_chunk_flipbook_files/figure-html/the_chunk4_auto_03_output-1.png)
]

---
count: false

.panel1-the_chunk4-auto[

``` r
end_study_events %>% head(2)

p3 +
  geom_swim_label(
    data = end_study_events,
    aes(x = time_from_initial_infusion,
        y = pt_id,
        label_vals = end_study_label,
        label_names = end_study_name),
    label.size = NA, fill = NA, size = 5
  ) +

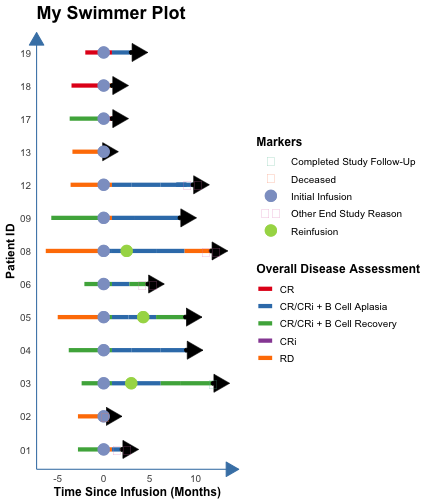

* scale_color_brewer(name = "Markers", palette = "Set2")
```
]

.panel2-the_chunk4-auto[

```
# A tibble: 2 × 4
  pt_id time_from_initial_infusion end_study_label end_study_name
  <chr>                      <dbl> <chr>           <chr>
1 01                           2   ⚠️               Other End Study Reason
2 02                           0.2 ❌              Deceased
```

![](swim_chunk_flipbook_files/figure-html/the_chunk4_auto_04_output-1.png)
]

<style>
.panel1-the_chunk4-auto {
  color: black;
  width: 38.6060606060606%;
  hight: 32%;
  float: left;
  padding-left: 1%;
  font-size: 80%
}
.panel2-the_chunk4-auto {
  color: black;
  width: 59.3939393939394%;
  hight: 32%;
  float: left;
  padding-left: 1%;
  font-size: 80%
}
.panel3-the_chunk4-auto {
  color: black;
  width: NA%;
  hight: 33%;
  float: left;
  padding-left: 1%;
  font-size: 80%
}
</style>

<style type="text/css">
.remark-code{line-height: 1.5; font-size: 80%}

@media print {
  .has-continuation {
    display: block;
  }
}

code.r.hljs.remark-code{
  position: relative;
  overflow-x: hidden;
}

code.r.hljs.remark-code:hover{
  overflow-x:visible;
  width: 500px;
  border-style: solid;
}
</style>
