My First Closeread

Graphical poems with ggplot2.

Closeread enables scrollytelling.

ggplot2 allows you build up your plot bit by bit - to write ‘graphical poems’ (Wickham 2010). It is easy to gain insights simply by defining what variation i variables in dataset via channels in data,

Now we add a point layer, library(ggplot2); cars

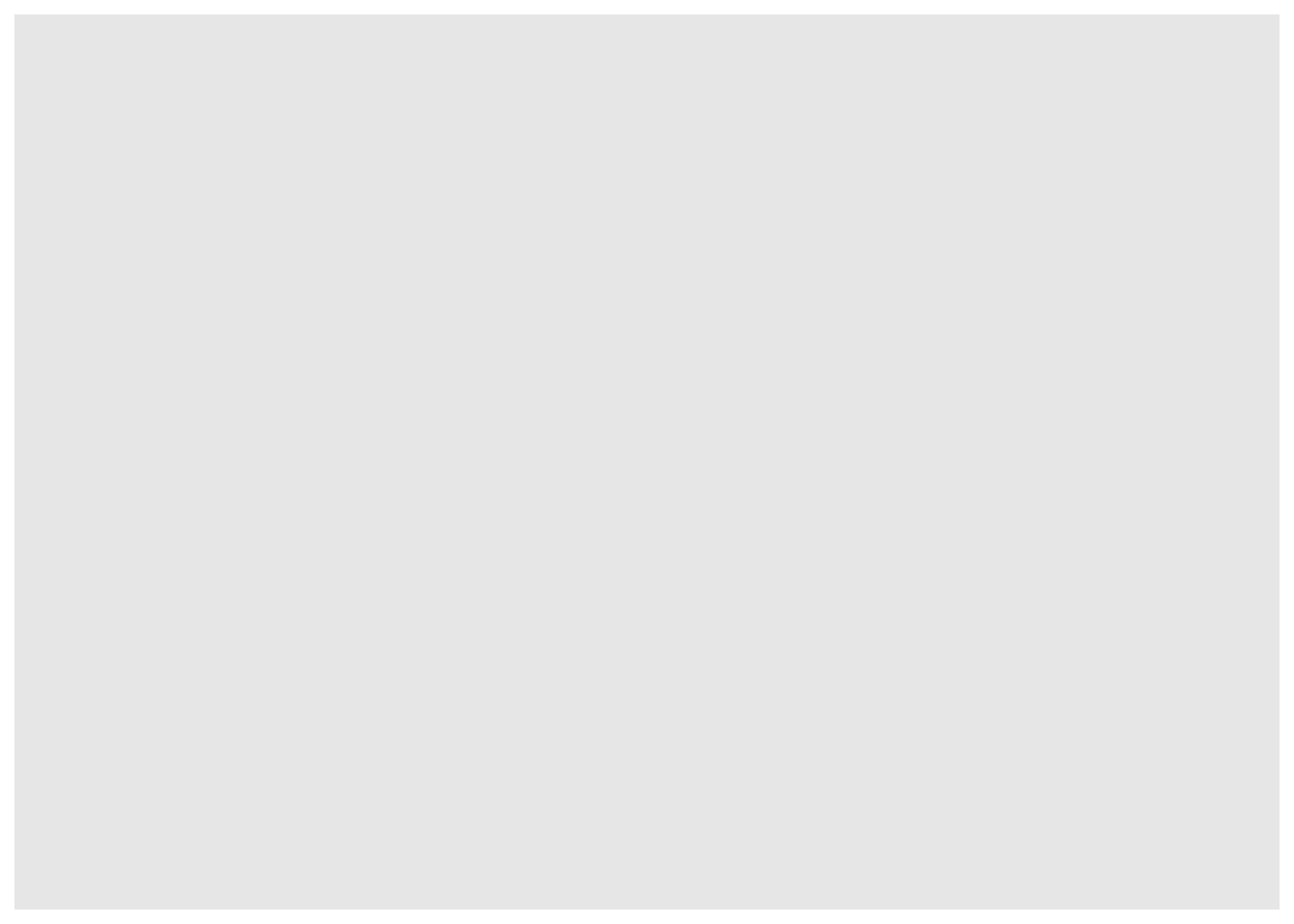

Now we add a point layer, cars |>ggplot(data = _)

Now we define positional mapping x and y, last_plot() + aes(x = speed, y = dist)

Now we add a point layer, last_plot() + geom_point()

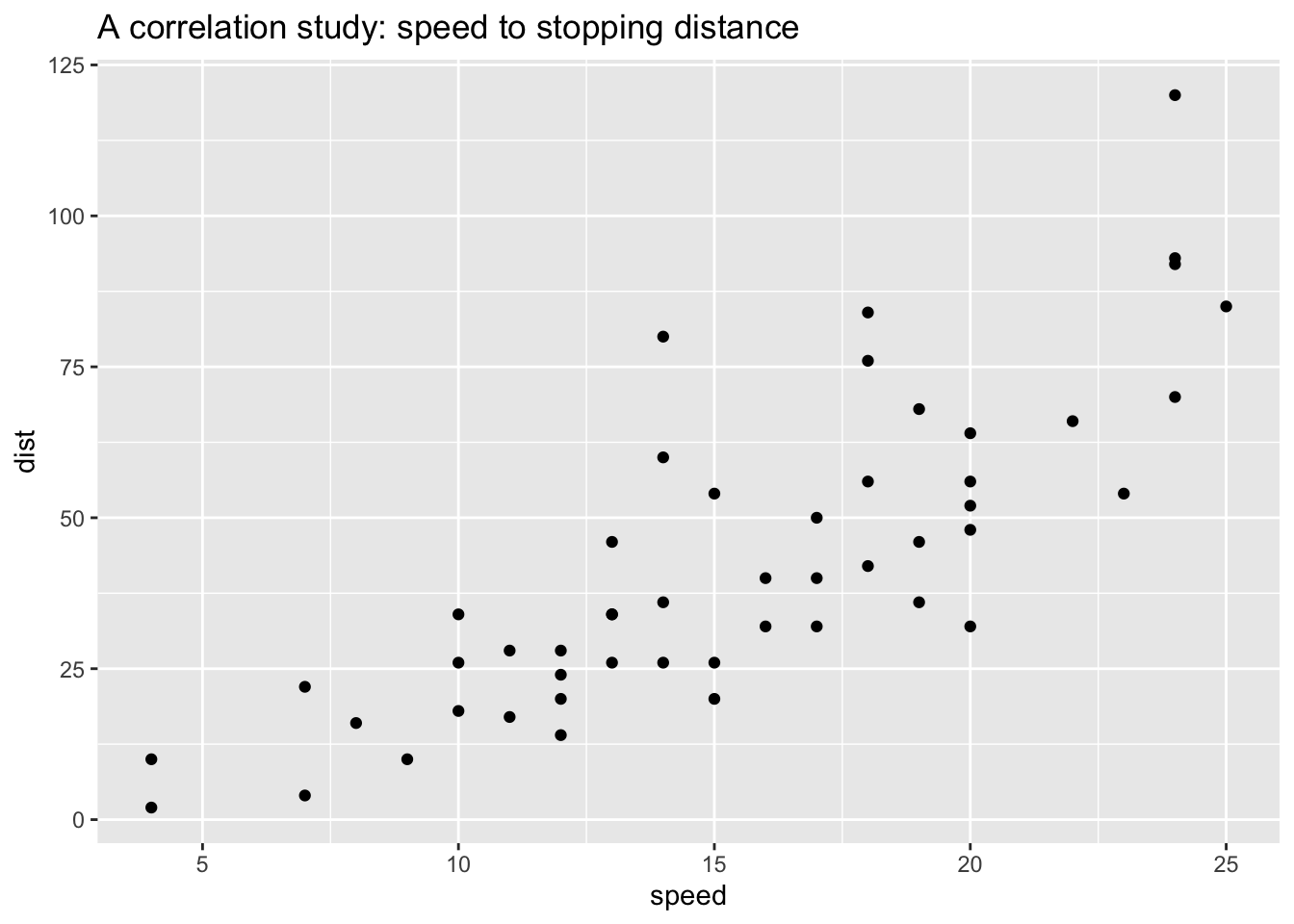

Now we add a title, last_plot() + labs(title = "A correlation study: speed to stopping distance")

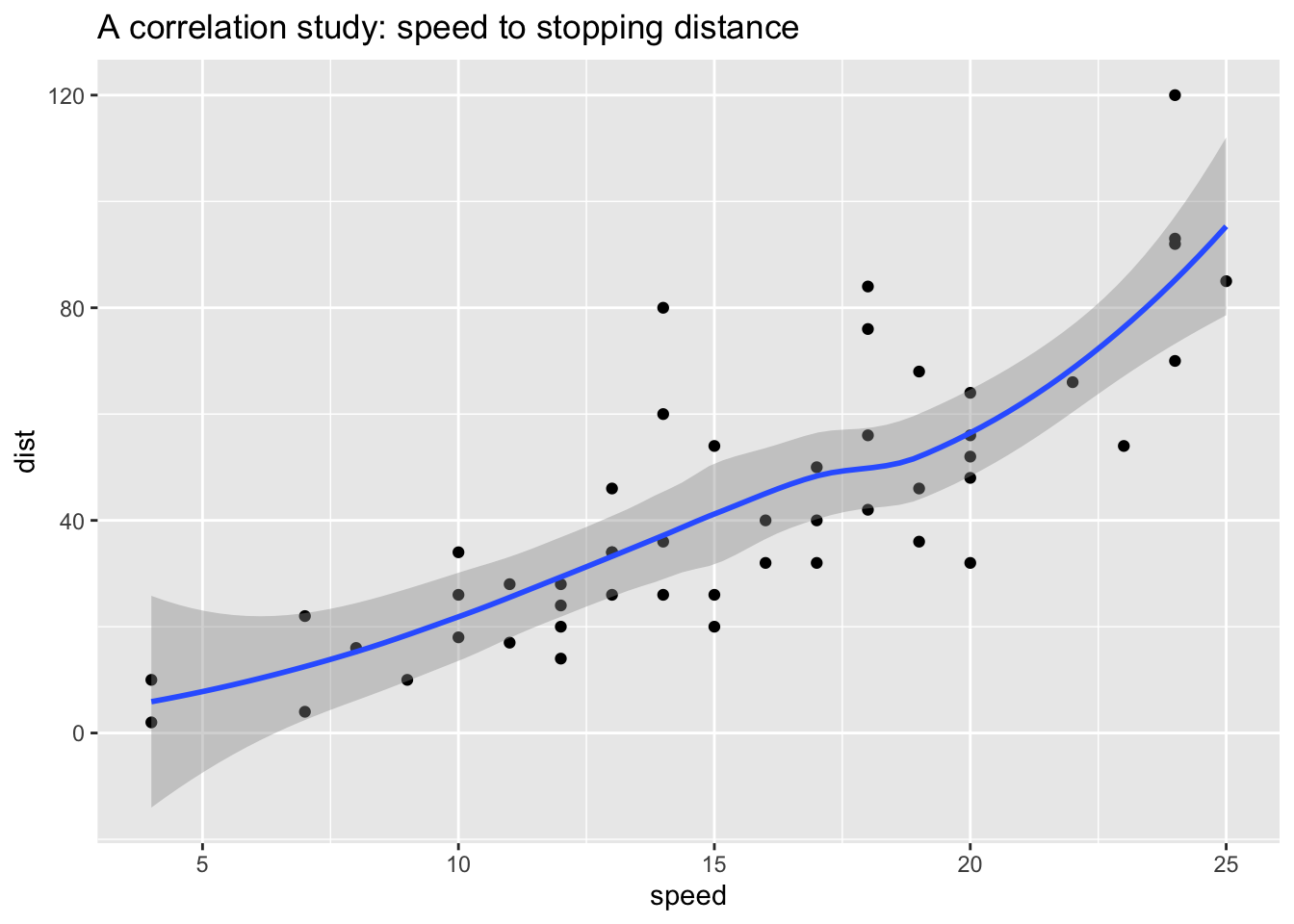

and smooth, last_plot() + geom_smooth()

And plot fitted, last_plot() + stat_smooth(geom = GeomPoint, xseq = cars$speed, color = "blue")

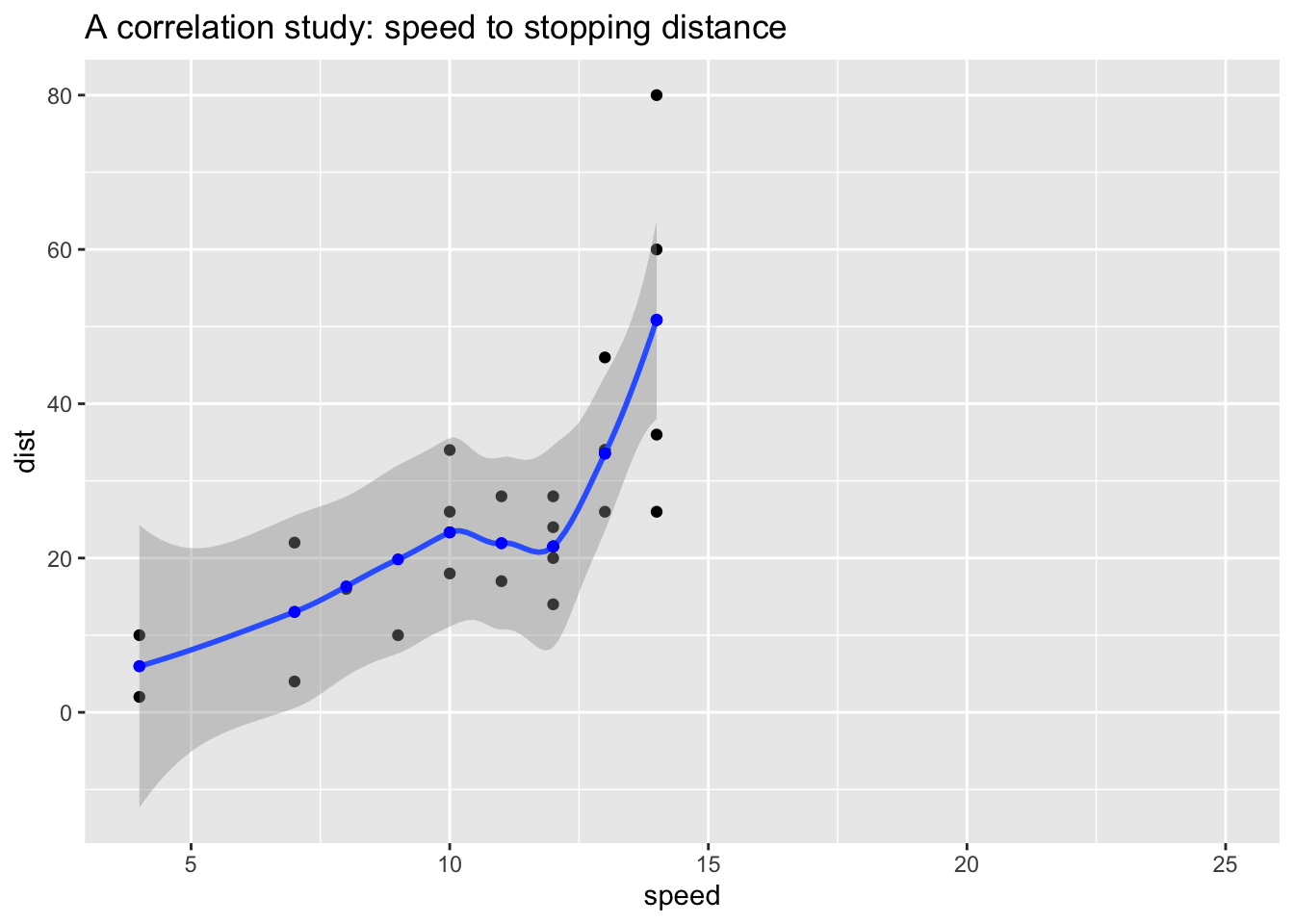

With subset of data, last_plot() %+% (cars |> filter(speed < 15))

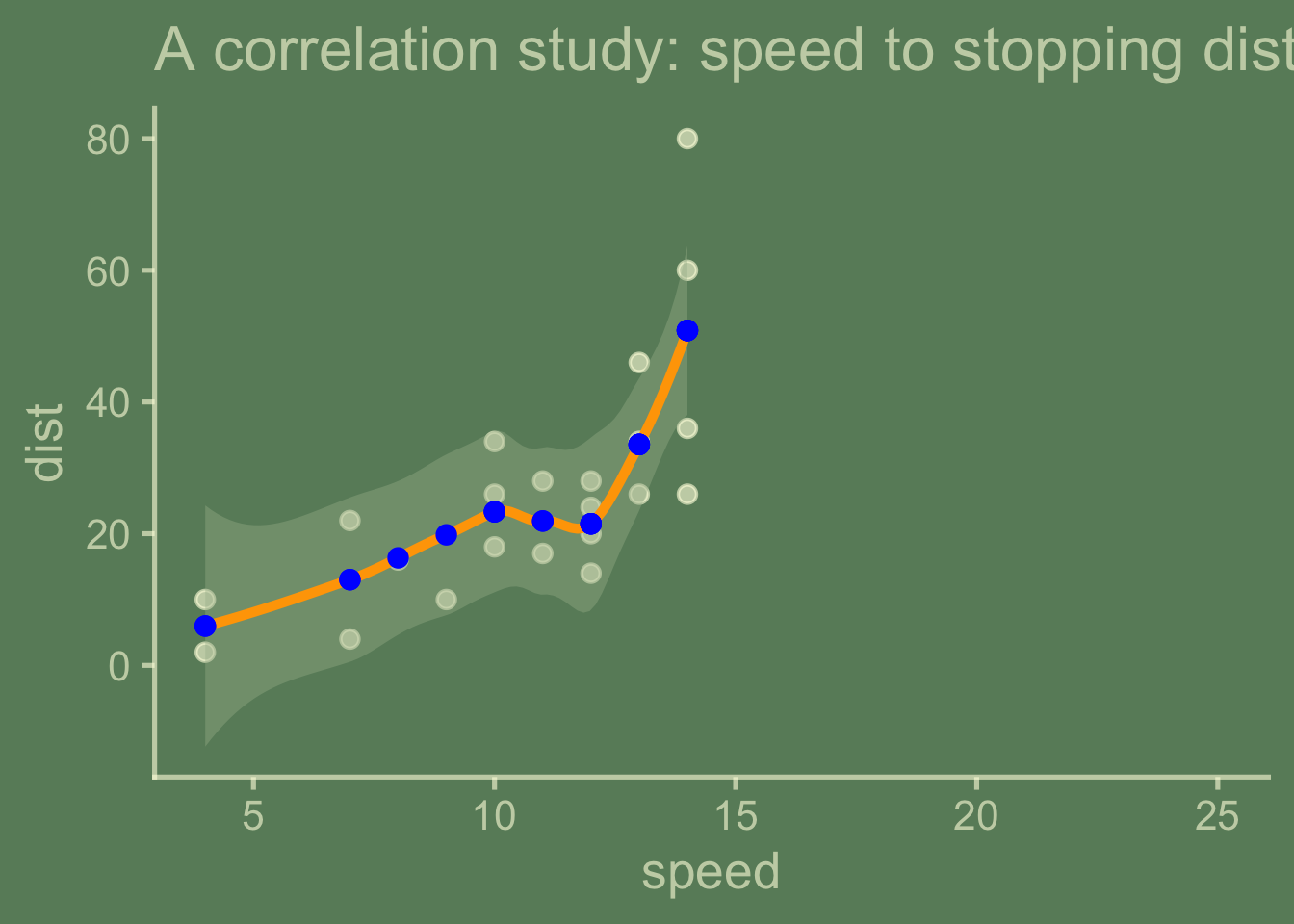

change to teaching theme, last_plot() + ggchalkboard::theme_chalkboard()

, ggplot(cars)

, aes(x = speed, y = dist)

, geom_point()

, geom_smooth()

1. Highlighting
2. Zooming
3. Panning

library(ggplot2);
cars

# A tibble: 50 × 2
   speed  dist
   <dbl> <dbl>
 1     4     2
 2     4    10
 3     7     4
 4     7    22
 5     8    16
 6     9    10
 7    10    18
 8    10    26
 9    10    34
10    11    17
# ℹ 40 more rows

cars |>
ggplot(data = _)

last_plot() +
  aes(x = speed, y = dist)

last_plot() +
  geom_point()

last_plot() +
  labs(title = "A correlation study: speed to stopping distance")

last_plot() +
  geom_smooth()

last_plot() +
  stat_smooth(geom = GeomPoint, xseq = cars$speed, color = "blue")

last_plot() %+%
  (cars |> filter(speed < 15))

last_plot() +
  ggchalkboard::theme_chalkboard()

  ggplot(cars)

last_plot() +
    aes(x = speed, y = dist)

last_plot() +
    geom_point()

last_plot() +
    geom_smooth()

```{r walkthrough, include = T}
ggplot(cars) +
  aes(x = speed, y = dist) +
  geom_point() +
  geom_smooth()
```

ggplot(cars) +
  aes(x = speed, y = dist) +
  geom_point() +
  geom_smooth()

knitr::knit_code$get("walkthrough")

cr_last_plot_construction <- ':::{focus-on="cr-.PLOTXXX"}\n.COMMENT, `.CODE`\n:::\n\n:::{#cr-.PLOTXXX}\n```{r .PLOTXXX}\n.LEADING\n  .CODE\n```\n:::\n'

knitr::knit_code$get("walkthrough") |>
  str_remove("\\s*?\\+$") |>
  tibble(code = _) |>
  mutate(index = row_number()) |>
  mutate(plot_name = paste("walkthrough", sep = "-", index)) |>
  mutate(explosion = cr_last_plot_construction) |>
  mutate(explosion = str_replace_all(explosion, ".PLOTXXX", plot_name)) |>
  mutate(explosion = str_replace(explosion, ".COMMENT", "")) |>
  mutate(explosion = str_replace_all(explosion, ".CODE", code)) |>
  mutate(explosion = str_replace(explosion, ".LEADING", ifelse(index == 1, "", "last_plot() +"))) |>
  pull(explosion) |>
  cat(sep = "\n") ->
to_closeread

:::{focus-on="cr-walkthrough-1"}
, `ggplot(cars)`
:::

:::{#cr-walkthrough-1}
```{r walkthrough-1}

  ggplot(cars)
```
:::

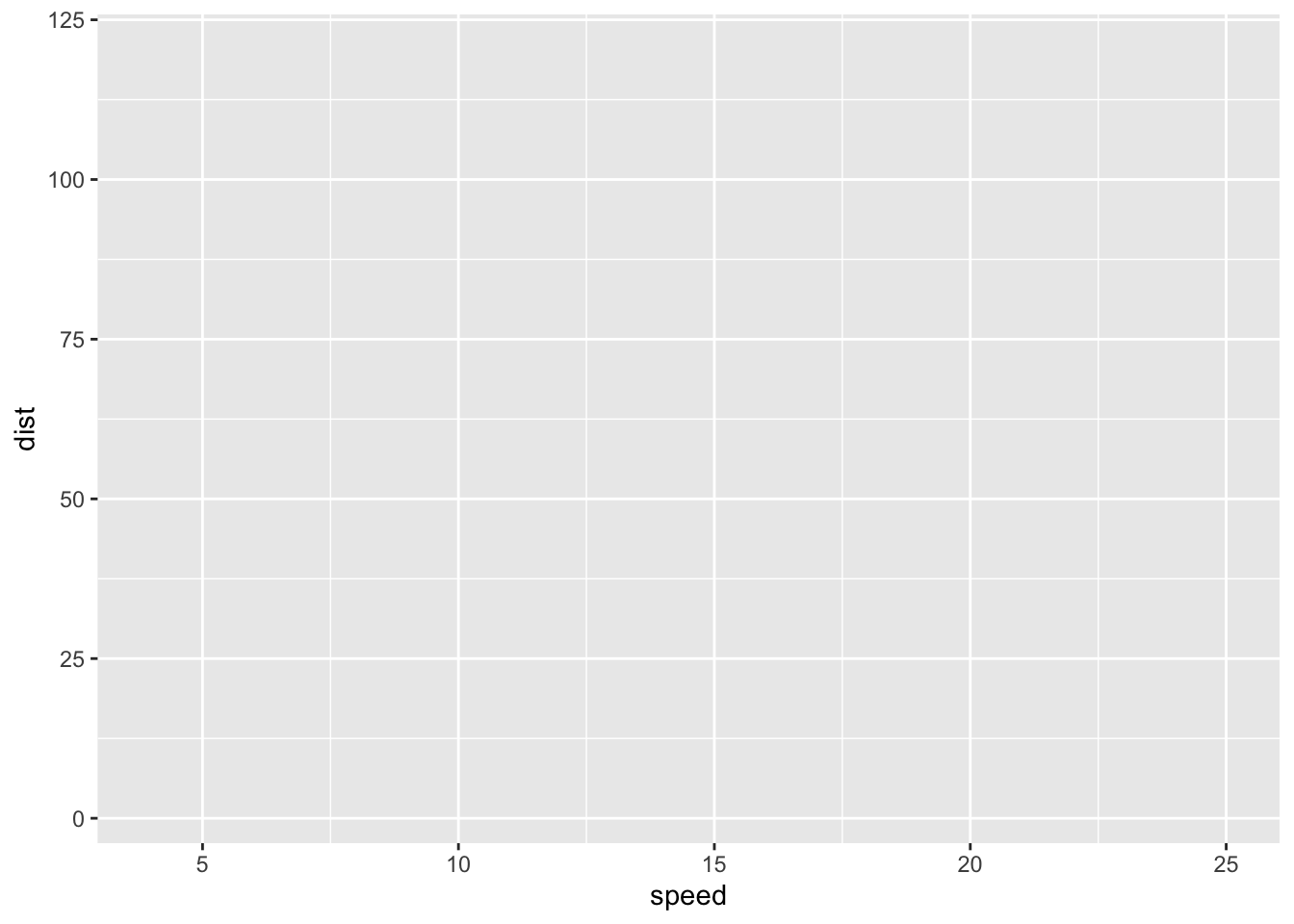

:::{focus-on="cr-walkthrough-2"}
, `  aes(x = speed, y = dist)`
:::

:::{#cr-walkthrough-2}
```{r walkthrough-2}
last_plot() +
    aes(x = speed, y = dist)
```
:::

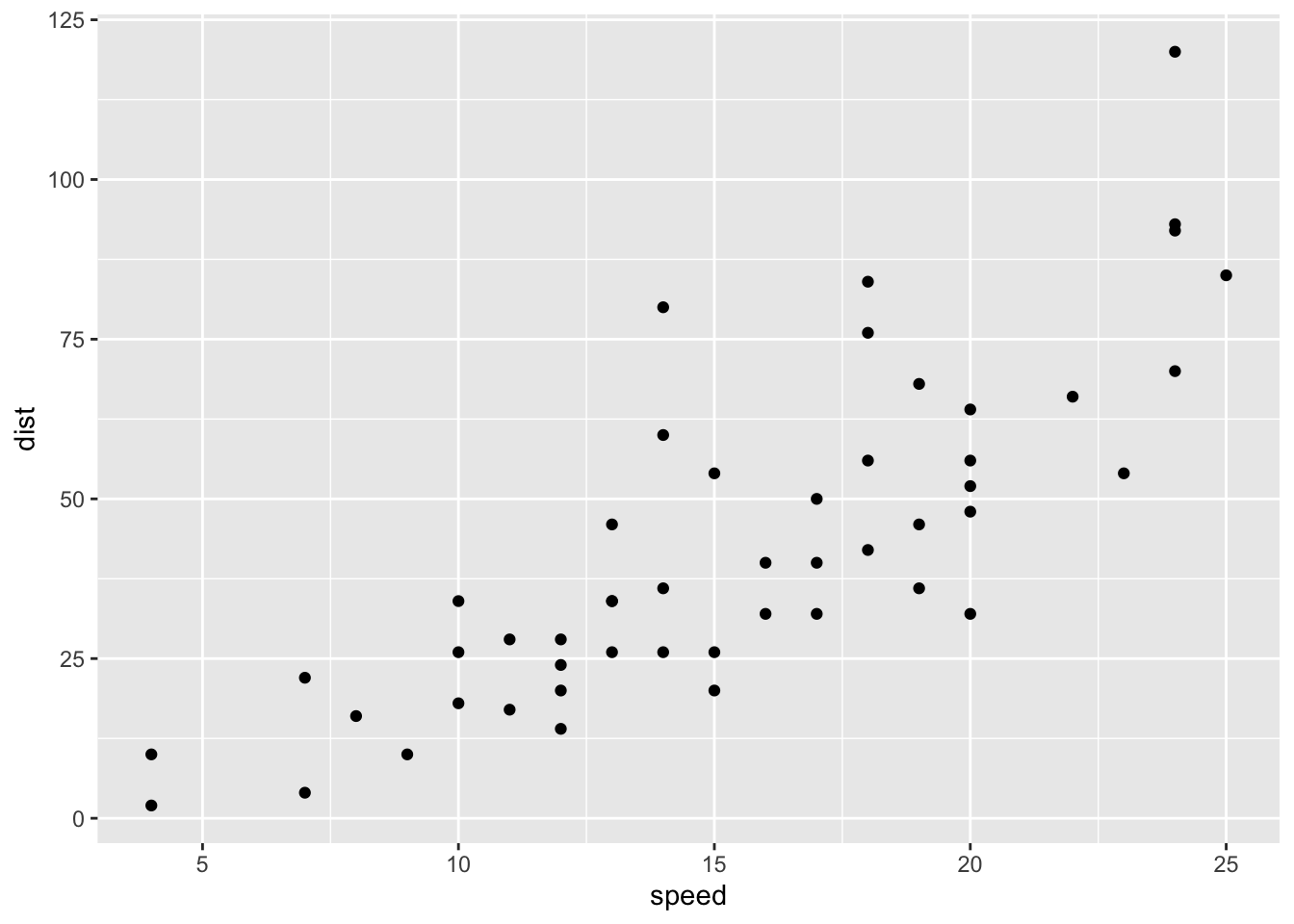

:::{focus-on="cr-walkthrough-3"}
, `  geom_point()`
:::

:::{#cr-walkthrough-3}
```{r walkthrough-3}
last_plot() +
    geom_point()
```
:::

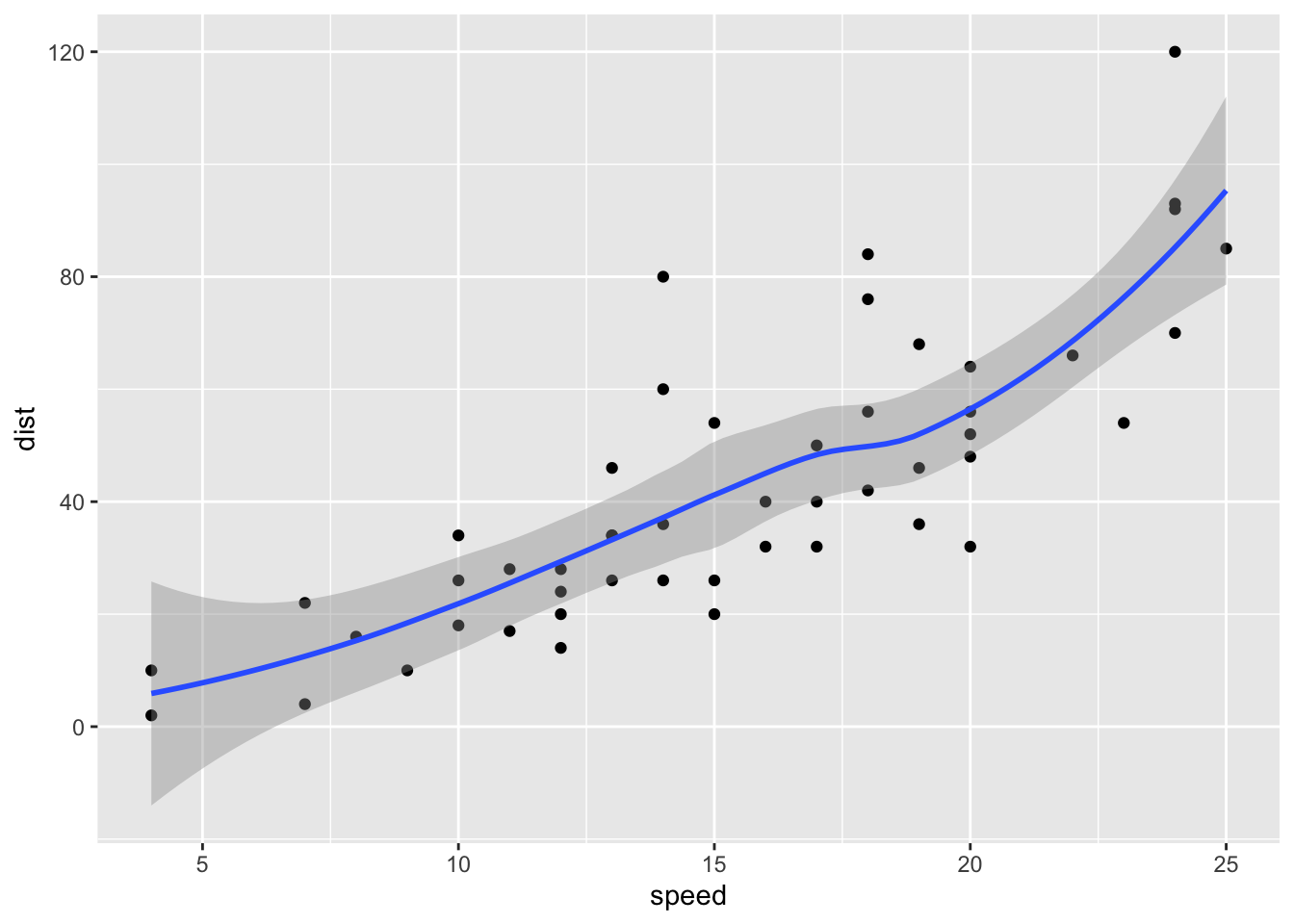

:::{focus-on="cr-walkthrough-4"}
, `  geom_smooth()`
:::

:::{#cr-walkthrough-4}
```{r walkthrough-4}
last_plot() +
    geom_smooth()
```
:::
