easy geom recipes

Author

Gina Reynolds, Morgan Brown

Published

January 3, 2022

Using ggplot2 has been described as writing ‘graphical poems’. But we may feel at a loss for ‘words’ when functions we’d like to have don’t exist. The ggplot2 extension system allows us to build new ‘vocabulary’ for fluent expression.

An exciting extension mechanism is that of inheriting from existing, more primitive geoms after performing some calculation.

To get your feet wet in this world and give you a taste of patterns for geom extension, we provide three basic examples of the geoms_ that inherit from existing geoms (point, text, segment, etc) along with a practice exercise. With such geoms, calculation is done under the hood by the ggplot2 system.

With these geom, you can write new graphical poems with exciting new graphical ‘words’!

This tutorial is intended for individuals who already have a working knowledge of the grammar of ggplot2, but may like to build a richer vocabulary for themselves.

Preview

Our recipes take the form:

Step 0. Get the job done with ‘base’ ggplot2. It’s a good idea to clarify what needs to happen without getting into the extension architecture
Step 1. Write a computation function. Wrap the necessary computation into a function that your target geom_*() function will perform. We focus on ‘compute_group’ computation only in this tutorial.
Step 2. Define a ggproto object. ggproto objects allow your extension to work together with base ggplot2 functions! You’ll use the computation function from step 1 to help define it.
Step 3. Write your geom function! You’re ready to write your function. You will incorporate the ggproto from step 2 and also define which more primitive geom (point, text, segment etc) you want other behaviors to inherit from.
Step 4. Test/Enjoy! Take your new geom for a spin! Check out group-wise computation behavior!

Below, you’ll see a completely worked example (example recipes) and then a invitation to build a related target geom_*().

Example recipe #1: `geom_point_xy_medians()`

–

This will be a point at the median of x and y

Step 0: use base ggplot2 to get the job done

library(tidyverse)
library(palmerpenguins)
penguins <- remove_missing(penguins)


penguins_medians <- penguins %>%
  summarize(bill_length_mm_median = median(bill_length_mm),
            bill_depth_mm_median = median(bill_depth_mm))

penguins %>%
  ggplot() +
  aes(x = bill_depth_mm) +
  aes(y = bill_length_mm) +
  geom_point() +
  geom_point(data = penguins_medians,
    color = "red", size = 4,
             aes(x = bill_depth_mm_median,
                 y = bill_length_mm_median))

Step 1: computation

define computation that ggplot2 should do for you, before plotting
- here it’s computing a variable with labels for each observation
test that functionality Step 1.b

# Step 1.a
compute_group_xy_medians <- function(data, scales){ #  scales is used internally in ggplot2
  data %>%
    summarize(x = median(x),
            y = median(y))
}

# Step 1.b
penguins %>%
  rename(x = bill_depth_mm,       # ggplot2 will work with 'aes' column names
         y = bill_length_mm) %>%  # therefore rename is required to used the compute function
  compute_group_xy_medians()

# A tibble: 1 × 2
      x     y
  <dbl> <dbl>
1  17.3  44.5

Step 2: define ggproto

Things to notice

what’s the naming convention for the proto object?
which aesthetics are required as inputs?
where does the function from above go?

StatXYMedians <- ggplot2::ggproto(`_class` = "StatXYMedians",
                                  `_inherit` = ggplot2::Stat,
                                  required_aes = c("x", "y"),
                                  compute_group = compute_group_xy_medians)

Step 3: define geom_* function

Things to notice

Where does our work up to this point enter in?
What more primitive geom will we inherit behavior from?

geom_point_xy_medians <- function(mapping = NULL, data = NULL,
                           position = "identity", na.rm = FALSE,
                           show.legend = NA,
                           inherit.aes = TRUE, ...) {
  ggplot2::layer(
    stat = StatXYMedians,        # proto object from step 2
    geom = ggplot2::GeomPoint,   # inherit other behavior
    data = data,
    mapping = mapping,
    position = position,
    show.legend = show.legend,
    inherit.aes = inherit.aes,
    params = list(na.rm = na.rm, ...)
  )
}

Step 4: Enjoy! Use your function

penguins %>%
  ggplot()+
  aes(x = bill_depth_mm, y = bill_length_mm)+
  geom_point()+
  geom_point_xy_medians(color = "red")

And check out conditionality!

penguins %>%
  ggplot()+
  aes(x = bill_depth_mm,
      y = bill_length_mm,
      color = species)+
  geom_point()+
  geom_point_xy_medians(size = 4)

Task #1: create the function `geom_point_xy_means()`

Using recipe #1 as a reference, try to create the function geom_point_xy_means()

# step 0: use base ggplot2

# step 1: write your compute_group function (and test)

# step 2: write ggproto with compute_group as an input

# step 3: write your geom_*() function with ggproto as an input

# step 4: enjoy!

Example recipe #2: `geom_label_id()`

Step 0: use base ggplot2 to get the job done

cars %>%
  mutate(id_number = 1:n()) %>%
  ggplot() +
  aes(x = speed, y = dist) +
  geom_point() +
  geom_label(aes(label = id_number),
             hjust = 1.2)

Step 1: computation

# you won't use the scales argument, but ggplot will later
compute_group_row_number <- function(data, scales){

  data %>%
    # add an additional column called label
    # the geom we inherit from requires the label aesthetic
    mutate(label = 1:n())

}

# step 1b test the computation function
cars %>%
  # input must have required aesthetic inputs as columns
  rename(x = speed, y = dist) %>%
  compute_group_row_number() %>%
  head()

  x  y label
1 4  2     1
2 4 10     2
3 7  4     3
4 7 22     4
5 8 16     5
6 9 10     6

Step 2: define ggproto

StatRownumber <- ggplot2::ggproto(`_class` = "StatRownumber",
                                  `_inherit` = ggplot2::Stat,
                                  required_aes = c("x", "y"),
                                  compute_group = compute_group_row_number)

Step 3: define geom_* function

define the stat and geom for your layer

geom_label_row_number <- function(mapping = NULL, data = NULL,
                           position = "identity", na.rm = FALSE,
                           show.legend = NA,
                           inherit.aes = TRUE, ...) {
  ggplot2::layer(
    stat = StatRownumber, # proto object from Step 2
    geom = ggplot2::GeomLabel, # inherit other behavior
    data = data,
    mapping = mapping,
    position = position,
    show.legend = show.legend,
    inherit.aes = inherit.aes,
    params = list(na.rm = na.rm, ...)
  )
}

Step 4: Enjoy! Use your function

cars %>%
  ggplot() +
  aes(x = speed, y = dist) +
  geom_point() +
  geom_label_row_number(hjust = 1.2) # function in action

And check out conditionality!

last_plot() +
  aes(color = dist > 60) # Computation is within group

Task #2: create `geom_text_coordinates()`

Using recipe #2 as a reference, can you create the function geom_text_coordinates().

–

geom should label point with its coordinates ‘(x, y)’
geom should have behavior of geom_text (not geom_label)

Hint:

paste0("(", 1, ", ",3., ")")

[1] "(1, 3)"

# step 0: use base ggplot2

# step 1: write your compute_group function (and test)

# step 2: write ggproto with compute_group as an input

# step 3: write your geom_*() function with ggproto as an input

# step 4: enjoy!

Example recipe #3: `geom_point_lm_fitted()`

Step 0: use base ggplot2 to get the job done

model <- lm(formula = bill_length_mm ~ bill_depth_mm,
            data = penguins)

penguins_w_fitted <- penguins %>%
  mutate(fitted = model$fitted.values)


penguins %>%
  ggplot() +
  aes(x = bill_depth_mm, y = bill_length_mm) +
  geom_point() +
  geom_smooth(method = "lm", se = F) +
  geom_point(data = penguins_w_fitted,
             aes(y = fitted),
             color = "blue")

Step 1: computation

compute_group_lm_fitted<- function(data, scales){
  model<-lm(formula= y ~ x, data = data)
  data %>%
    mutate(y=model$fitted.values)
}

# test out the function
penguins %>%
  # rename to explicitly state the x and y inputs
  rename(x = bill_depth_mm, y = bill_length_mm)%>%
  compute_group_lm_fitted()

# A tibble: 333 × 8
   species island        y     x flipper_length_mm body_mass_g sex     year
   <fct>   <fct>     <dbl> <dbl>             <int>       <int> <fct>  <int>
 1 Adelie  Torgersen  43.0  18.7               181        3750 male    2007
 2 Adelie  Torgersen  43.8  17.4               186        3800 female  2007
 3 Adelie  Torgersen  43.5  18                 195        3250 female  2007
 4 Adelie  Torgersen  42.6  19.3               193        3450 female  2007
 5 Adelie  Torgersen  41.8  20.6               190        3650 male    2007
 6 Adelie  Torgersen  43.6  17.8               181        3625 female  2007
 7 Adelie  Torgersen  42.4  19.6               195        4675 male    2007
 8 Adelie  Torgersen  43.7  17.6               182        3200 female  2007
 9 Adelie  Torgersen  41.4  21.2               191        3800 male    2007
10 Adelie  Torgersen  41.5  21.1               198        4400 male    2007
# ℹ 323 more rows

Step 2: define ggproto

StatLmFitted<-ggplot2::ggproto(`_class` = "StatLmFitted",
                                  `_inherit` = ggplot2::Stat,
                                  required_aes = c("x", "y"),
                                  compute_group = compute_group_lm_fitted)

Step 3: define geom_* function

geom_point_lm_fitted <- function(mapping = NULL, data = NULL,
                           position = "identity", na.rm = FALSE,
                           show.legend = NA,
                           inherit.aes = TRUE, ...) {
  ggplot2::layer(
    stat = StatLmFitted, # proto object from step 2
    geom = ggplot2::GeomPoint, # inherit other behavior
    data = data,
    mapping = mapping,
    position = position,
    show.legend = show.legend,
    inherit.aes = inherit.aes,
    params = list(na.rm = na.rm, ...)
  )
}

Step 4: Enjoy! Use your function

penguins %>%
  ggplot() +
  aes(x = bill_depth_mm, y = bill_length_mm) +
  geom_point() +
  geom_smooth(method="lm", se= F)+
  geom_point_lm_fitted(color="blue")

And check out conditionality

penguins %>%
  ggplot() +
  aes(x = bill_depth_mm, y = bill_length_mm) +
  geom_point() +
  geom_smooth(method="lm", se= F) +
  geom_point_lm_fitted() +
  facet_wrap(facets = vars(species))

Task #3 create `geom_segment_lm_residuals()`

Create the function geom_segment_lm_residuals().

Hint: consider what aesthetics are required for segments. We’ll give you Step 0 this time…

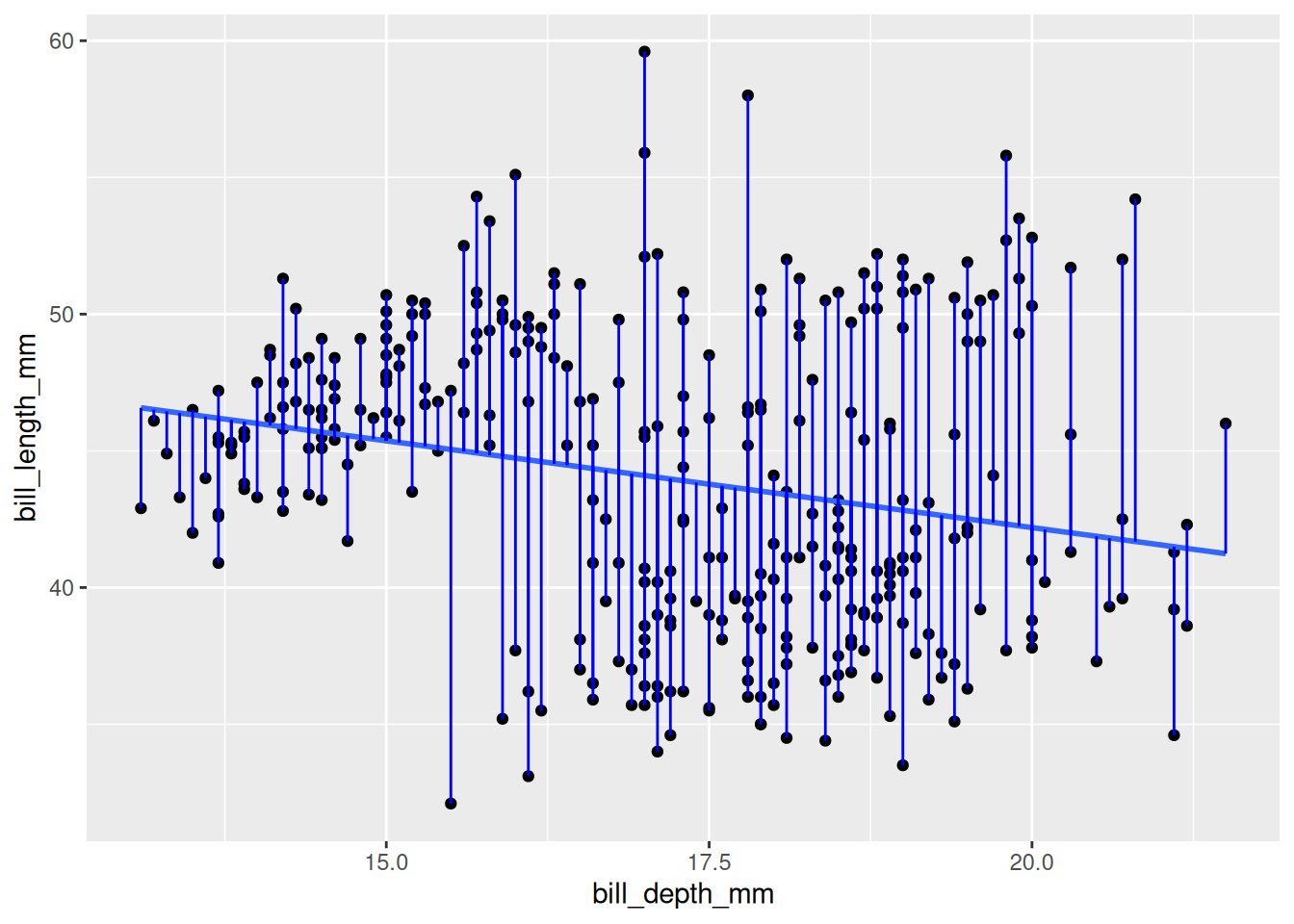

Step 0: use base ggplot2 to get the job done

# step 0: use base ggplot2
model <- lm(formula = bill_length_mm ~ bill_depth_mm,
            data = penguins)

penguins_w_fitted <- penguins %>%
  mutate(fitted = model$fitted.values)

penguins %>%
  ggplot() +
  aes(x = bill_depth_mm, y = bill_length_mm) +
  geom_point() +
  geom_smooth(method = "lm", se = F) +
  geom_segment(data = penguins_w_fitted,
             aes(yend = fitted, xend = bill_depth_mm),
             color = "blue")

# step 1: write your compute_group function (and test)

# step 2: write ggproto with compute_group as an input

# step 3: write your geom_*() function with ggproto as an input

# step 4: enjoy!

Not interested in writing your own geoms?

Check out some ready-to-go geoms that might be of interest in the ggxmean package… or other extension packages.

Interested in working a bit more with geoms and making them available to more folks, but not interested in writing your own package?

Join in on the development and validation of the ggxmean package for statistical educators and everyday analysis!

Preview

Example recipe #1: geom_point_xy_medians()

Step 0: use base ggplot2 to get the job done

Step 1: computation

Step 2: define ggproto

Step 3: define geom_* function

Step 4: Enjoy! Use your function

And check out conditionality!

Task #1: create the function geom_point_xy_means()

Example recipe #2: geom_label_id()

Step 0: use base ggplot2 to get the job done

Step 1: computation

Step 2: define ggproto

Step 3: define geom_* function

Step 4: Enjoy! Use your function

And check out conditionality!

Task #2: create geom_text_coordinates()

Example recipe #3: geom_point_lm_fitted()

Step 0: use base ggplot2 to get the job done

Step 1: computation

Step 2: define ggproto

Step 3: define geom_* function

Step 4: Enjoy! Use your function

And check out conditionality

Task #3 create geom_segment_lm_residuals()

Hint: consider what aesthetics are required for segments. We’ll give you Step 0 this time…

Step 0: use base ggplot2 to get the job done

Example recipe #1: `geom_point_xy_medians()`

Task #1: create the function `geom_point_xy_means()`

Example recipe #2: `geom_label_id()`

Task #2: create `geom_text_coordinates()`

Example recipe #3: `geom_point_lm_fitted()`

Task #3 create `geom_segment_lm_residuals()`
